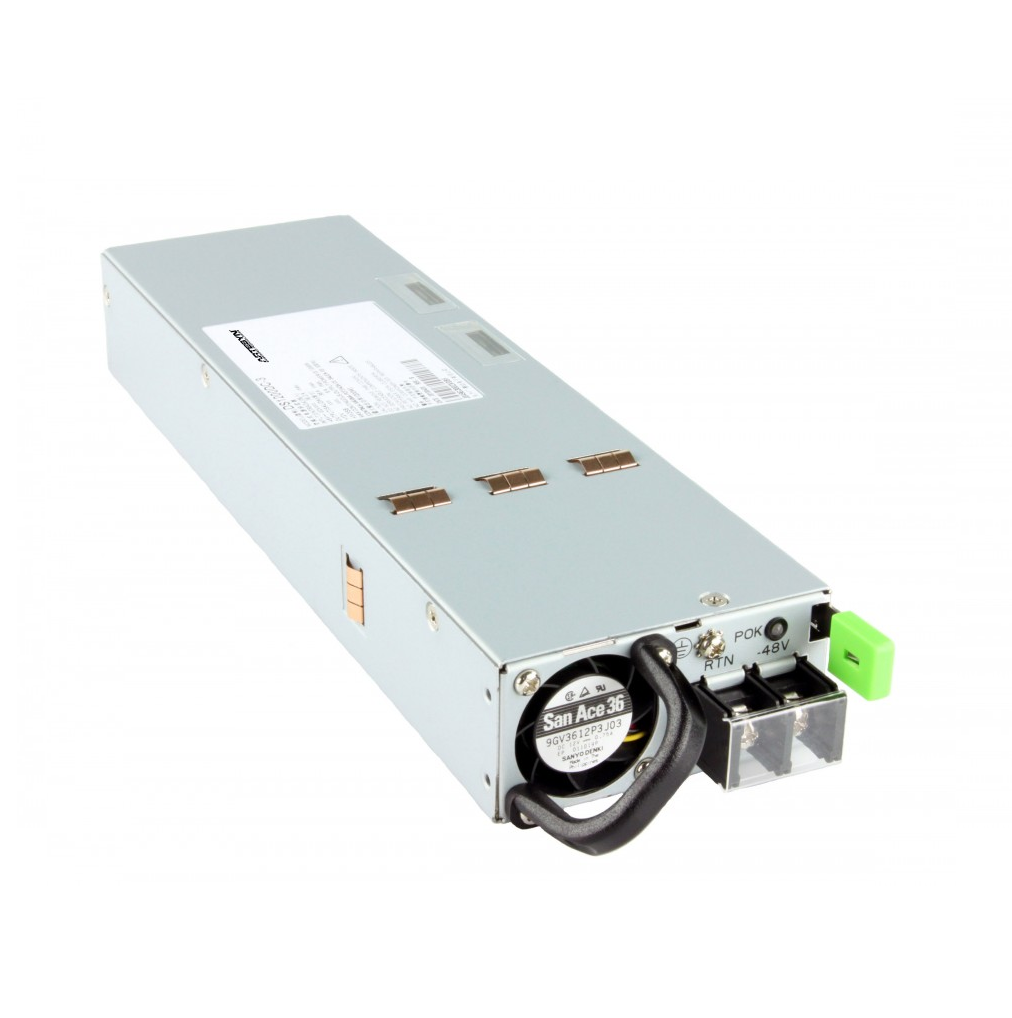

Artesyn DS1200DC-3 Front-end Power Supply (12V; 100A; 1200W)

Input range: -40 Vdc to -72 Vdc

Main DC voltage: +12 V @ 100 A

Adjustment range: ±5% on +12 V only using I2C

Operating temperature: -10 to 55 °C

Storage temperature: -40 to +85 °C

Humidity: 20 - 90% RH, non condensing

Nominal Output Voltage Set Point: 12.0 V

Set Point Tolerance: ±0.2%

Total Regulation: ±0.2%

Current: Min: 0 A Max: 100 A

Output Ripple P/P: 120mV

Overcurrent: 118 A - 147.6 A

Standby: 3.3 V @ 6 A

Air Flow: STD
