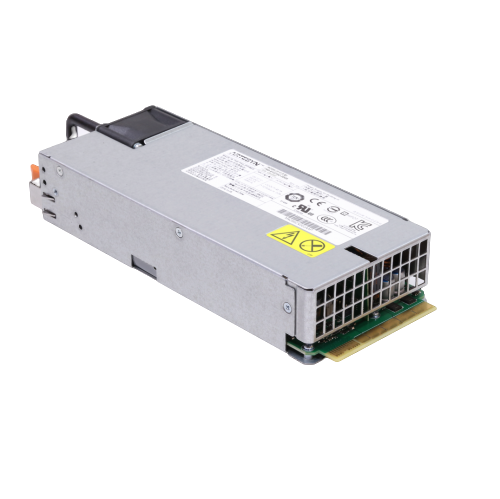

Artesyn CSV1100BP-3 Front-end Power Supply (12.2V/90.2A; 12Vsb/3A; 1100W)

Input range: 90-140 Vac; 180-264 Vac

Frequency: 47 Hz to 63 Hz

Max input current: 12.0 A @ 100 Vac

Main DC Output

Nominal setting: MIN: -0.20% /NOM: 12.2/ MAX: 0.20%

Total output regulation range: MIN: 11.59V / MAX: 12.81 V

Output current: MIN: 1.0 A/ MAX: 86.1 (Low); 90.2 (High)

Standby DC Output

Nominal setting: MIN: -3.5%/ NOM: 12.0/ MAX: +3.5%

Total output regulation range: MIN: 11.4 V/ MAX: 12.6 V

Output current: MIN: 0.0 A/ MAX: 3.0 A

Operating temperature: 5 to 50 °C continuous operation; allowable short term operation at 100% load up to 55 °C

Operating relative humidity: +8% to 93%, non-condensing

Nominal Main Output: 12.2 V @ 90.2 A

Standby Output: 12 V @ 3.0 A

Airflow Direction: Standard (forward)
