Direct access to our certified experts
Featured devices
Arria V ST SoC—5ASTFD5K3F40I3NES (SoC)
MAX® V CPLD—5M2210ZF256C4N (system controller)
MAX II CPLD—EPM570GF100 (embedded USB-BlasterTM II cable)
FPGA configuration sources
Embedded USB-Blaster II (JTAG) cable
EPCQ flash (Active Serial x1 or x4 configuration)
Flash fast passive parallel (FPP)
Hard processor system (HPS)
FPGA memory
2x 1,024 MB 32-bit DDR3 SDRAM
1x 512 Megabit (Mb) CFI synchronous Flash
1x 256 Mb NOR Flash (EPCQ)
FPGA I/O interfaces
1x PCI Express x4 Gen2 socket
2x FPGA mezzanine card (FMC) portds
2x 10/100 Ethernet ports
2x SPF+ ports
4x user LEDs
4x user pushbuttons
4x user dip switches
HPS boot sources
512 Mb QSPI Flash
Removable micro-SDCard flash
FPGA
HPS memory
1x 1,024 Mbyte (MB) DDR3 SDRAM with ECC
1x 512 Mb QSPI flash
Micro-SDCard socket with 4 GB micro-SDCard flash device
One 32 Kb I2C serial EEROM
HPS I/O interfaces
1x 1 Gigabit Etherent port (HPS)
1x USB 2.0 on-the-go (OTG) port (HPS)
2x RS-232 UART (through mini-USB port)
x1 real-time clock (with battery backup)
x1 two-line text LCD
x4 user LEDs
x4 user push buttons
x4 DIP switches
Clocking
Four-output programmable clock generator for FPGA reference clock inputs
148.5 MHz LVDS programmable voltage-controlled crystal oscillator (VCXO) for FPGA reference clock input
50 MHz single-ended oscillator for FPGA and MAX V FPGA clock input
100 MHz single-ended oscillator for MAX V FPGA configuration clock input
SMA inputs for FPGA and HPS clocks
LMK04828 clock jitter cleaner
Power
Laptop DC input 14—20 V adapter
System monitoring circuit
Power (voltage, current, wattage)
Mechanical
Board dimensions—7.175” x 9”
SoC Embedded Design Suite Subscription Edition
ARM Development Studio 5 (DS-5™) Altera Edition Toolkit
Hardware-to-software handoff tools
Linux run-time software for application development
SoC hardware libraries for firmware development
Application examples

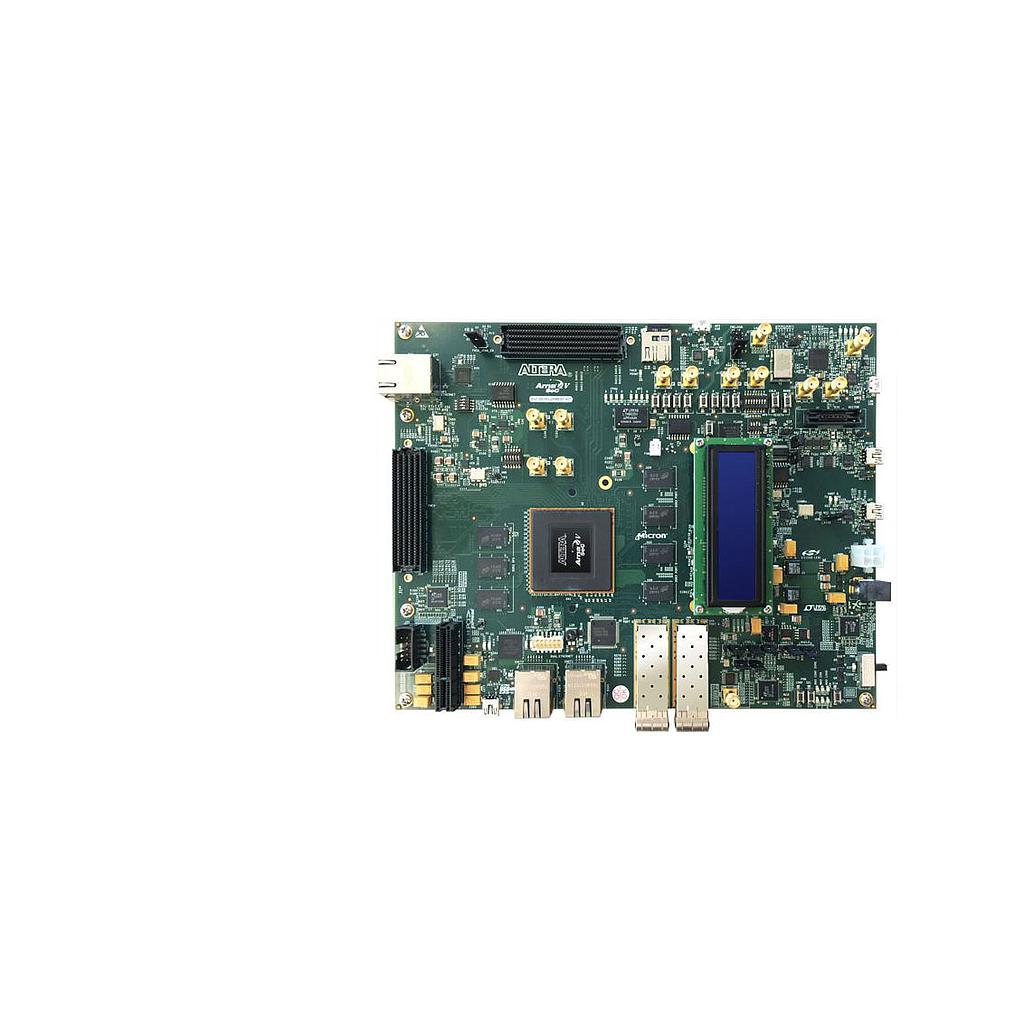

The Altera® Arria® V SoC Development Kit offers a quick and simple approach to develop custom ARM® processor-based SoC designs. Altera’s midrange, transceiver-based Arria V FPGA fabric provides the highest bandwidth with the lowest total power for midrange applications such as:
*Application-specific daughtercards, available separately, supporting a wide range of I/O and interface standards.
