Armfield FM42 Centrifugal compressor demonstration unit (20l/s, 3000rpm, 250W)

Max Flow Rate: 20 l/s typical

Max Head: 6.0KPa

Max fan speed: 3000rpm

Motor Power rating: 250W

Number of stages: 7

Equipment:

Armfield IFD7 Interface Unit

PC with spare USB port

Dimensions:

Height: 0.945m

Length: 0.88m

Width: 0.51m

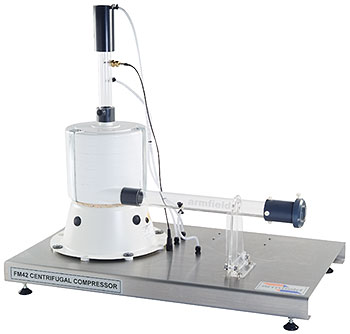

A small-scale multi-stage centrifugal compressor demonstration unit, comprising of an inlet duct, the compressor, an outlet duct and an adjustable aperture, all mounted on a stainless steel base.

Seven stages in the compressor.

Equipped with electronic measurement sensors for head pressure, flow-rate (via orifice plate) and air temperature.

Capable of being linked to a PC(not supplied) via a dedicated interface console (an essential accessory).

Supplied with software providing full instructions for setting up, operating, calibrating and performing the teaching exercises. Facilities for logging, processing and          displaying data graphically.

Full theoretical back-up together with a student questions and answers session

Instructional capabilities:

Measurement of constant-speed machine performance in terms of static and total pressures, rotor speed and motor shaft power, as a function of inlet flow

Measurement of compressor efficiency and estimation of impeller power efficiency

Measurement of performance at constant speeds

Introduction to similarity laws for scale-up

Comparison of student calculations with computer results
