Armfield FM41 Axial fan demonstration unit (0.06 KPa; 2700 rpm)

Performance specification

Max Flow Rate: 38 /s typical

Max Head: 0.06 KPa

Max fan speed 2700rpm

Motor Power rating 5W

Essential equipment

Armfield IFD7 Interface Unit

PC with spare USB port

Overall dimension

Height: 0.945m

Length: 0.85m

Width: 0.45m

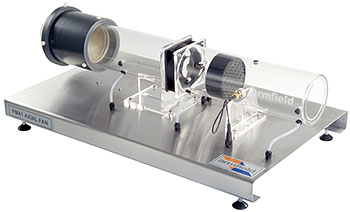

A small-scale axial fan demonstration unit, comprising of an inlet duct, the fan, an outlet duct and an adjustable aperture, all mounted on a stainless steel base.

Equipped with electronic measurement sensors for fan head pressure, flow-rate (via orifice plate), fan speed and air temperature.

Transparent ducts give visibility of the fan in operation.

Capable of being linked to a PC (not supplied) via a dedicated interface console (an essential accessory).

Supplied with software providing full instructions for setting up, operating, calibrating and performing the teaching exercises. Facilities for logging, processing and displaying data graphically.

Instructional capabilities

Measurement of inherent-speed machine performance in terms of static and total pressures, rotor speed and motor input power, as a function of inlet flow

Measurement of overall efficiency and estimation of impeller power efficiency

Measurement of performance at constant speeds

Introduction to similarity laws for scale-up

Comparison of student calculations with computer results
