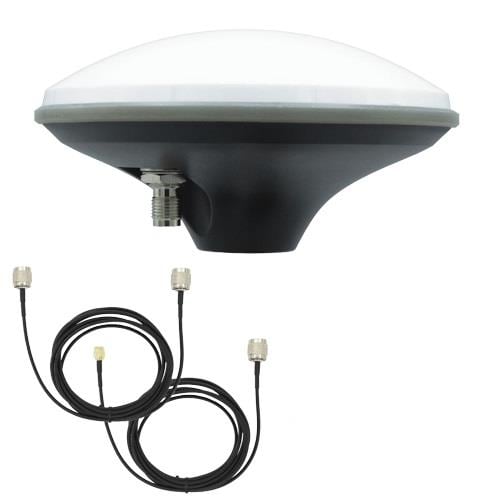

ArduSimple AS-ANT3B-CAL-L1256-SMATNC-01 Passive Antenna Calibrated Survey GNSS Tripleband + L-band antenna (IP67)
ManufacturerArduSimple(View more products from this manufacturer)
ModelAS-ANT3B-CAL-L1256-SMATNC-01
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gain: 5.5 dBi
VSWR: 1.5
Style: Radome
Width: 152 mm
Height: 67 mm
Length: 152 mm
IP Rating: IP66
Impedance: 50 Ohms
Cable Type: 1.5 M Coax to 2.5 M Coax
Application: GNSS
Polarization: RHCP
Mounting Style: Direct / Permanent Mount
Number of Bands: 4 Band
Mechanical Style: Module
Termination Style: Connector
Antenna Connector Type: SMA Male to TNC Female
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
