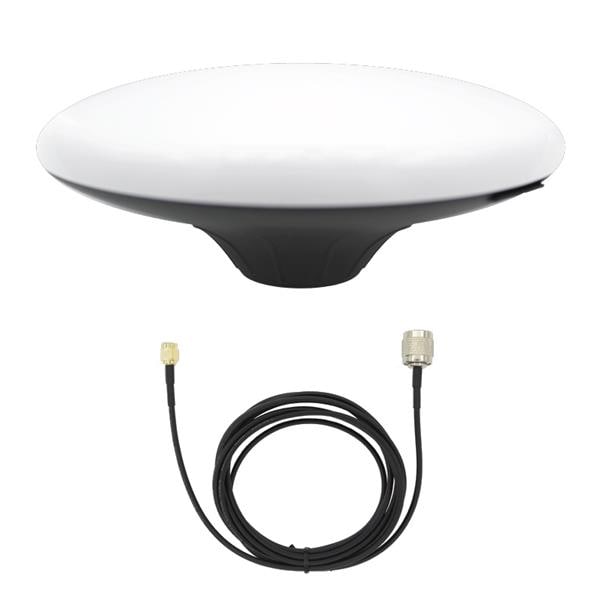

ArduSimple AS-ANT2B-SUR-L1L2-25SMA-00 Passive Antenna Survey GNSS Multiband antenna (IP66)
ManufacturerArduSimple(View more products from this manufacturer)
ModelAS-ANT2B-SUR-L1L2-25SMA-00
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gain: 5 dBi
VSWR: 1.5, 2
Style: Radome
Width: 63 mm
Height: 63 mm
Length: 147 mm
IP Rating: IP66
Impedance: 50 Ohms
Cable Type: 2.5 M Coax
Application: GNSS
Unit Weight: 607.824 g
Cable Length: 2.5 m
Polarization: RHCP
Mounting Style: Direct / Permanent Mount
Number of Bands: 4 Band
Mechanical Style: Module
Termination Style: Connector
Antenna Connector Type: SMA Male to TNC Female
Protocol - GPS, GLONASS: Galileo, GLONASS, GPS
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
