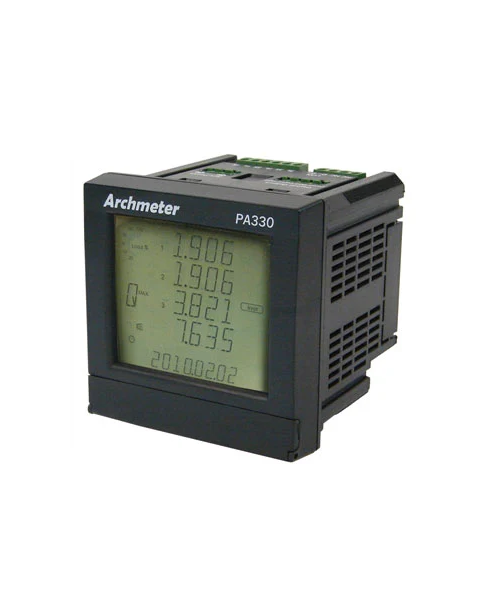

Archmeter PA330 Multifunction Power Meter

Aux Power: AC80-264V/DC100-300V, Max.2.3W

Input Voltage: CATIII 10V-600V L-L

Input Current: 2mA-5A

V input burden: ≧2MΩ(per channel), max 0.18VA

I input burden: ≦5mΩ(per channel), max 0.125VA

Accuracy: V,I 0.2%， W 0.5% (PF=1.0)

Frequency: 45-65Hz

Measures: V, I, kW, kvar, kVA, kWh, kvarh, kVAh, PF, Frequency, Demand, Running hour

Alarms: NONE, OVER V/I,OVER F, UNDER V /I, UNDER F, OVER Dmd, ANY

Power Quality: V/I THD: accumulate up to 54 orders, 5400/second sampling rate

V/I unbalance,V Eligibility,Min.& Max. parameters

Display: Mono 68X59 LCD

Communication: RS485, Lon(option)

Timer: RTC

Wiring Ports: Aux Power, Voltage, Current, DO*2, RS485, LON

I/O: DO OUTPUT*2；DO1 Alarm output、DO2 Pulse/ Alarm output

Operation Temperature: -20℃~70℃

Storage Temperature: -25℃~80℃

Humidity:20-90%RH

Dust/Water Proof Rating:Panel：IP52，Case：IP20

Size: 96(W) × 96(H) × 97(L) mm

Power consumption:

0.45~0.7W (Backlight off)

1.3~1.7W (Max. ,Backlight)

2.3W (Max. Backlight & Lon module)

Environmental Conditions:

Indoor use

Altitude up to: 2000M

Transient overvoltage on the mains supply is 2500V
