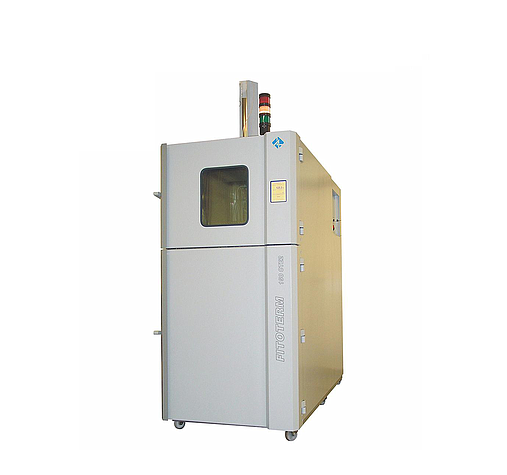

Aralab Fitoterm 150 CTE2 Temperature Shock testing chamber (-75º C~ +60º C)

- Temperature (Hot Chamber): Ambient to +200ºC
- Temperature (Cold Chamber): -75º C to +60º C
- Transfer time between chambers: ≤ 5 seconds
- Test space dimensions (H x W x D): 410 mm x 470 mm x 650 mm
- Cradle weight load: 50 Kg
- Temperature Precision in Time: ≤ ± 0,5ºC
- Temperature Precision in Space: ≤ ± 1,0ºC
- Weight: 900 Kg
- Electrical Supply: 3PH, N/PE, 400V, 32Amp
- Exterial dimension (d*w*h): 1.910 mm*950 mm*2.180 mm
Inclusions
- 1 stainless steel shelf
- 1 entry port at the top of the chamber
- 6 casters with adjustable height
- Observation window in multi-layer anti-condensation
glass
- Instructions manual in English
Optional Accessories
- Cool-UP (option to cool the heat cabinet with fresh air)
- FitoLog, FitoView and FitoProgram Software pack
- RS232 cable
- Additional shelves
- Calibration Certificate from Accredited Laboratory

Datasheet
