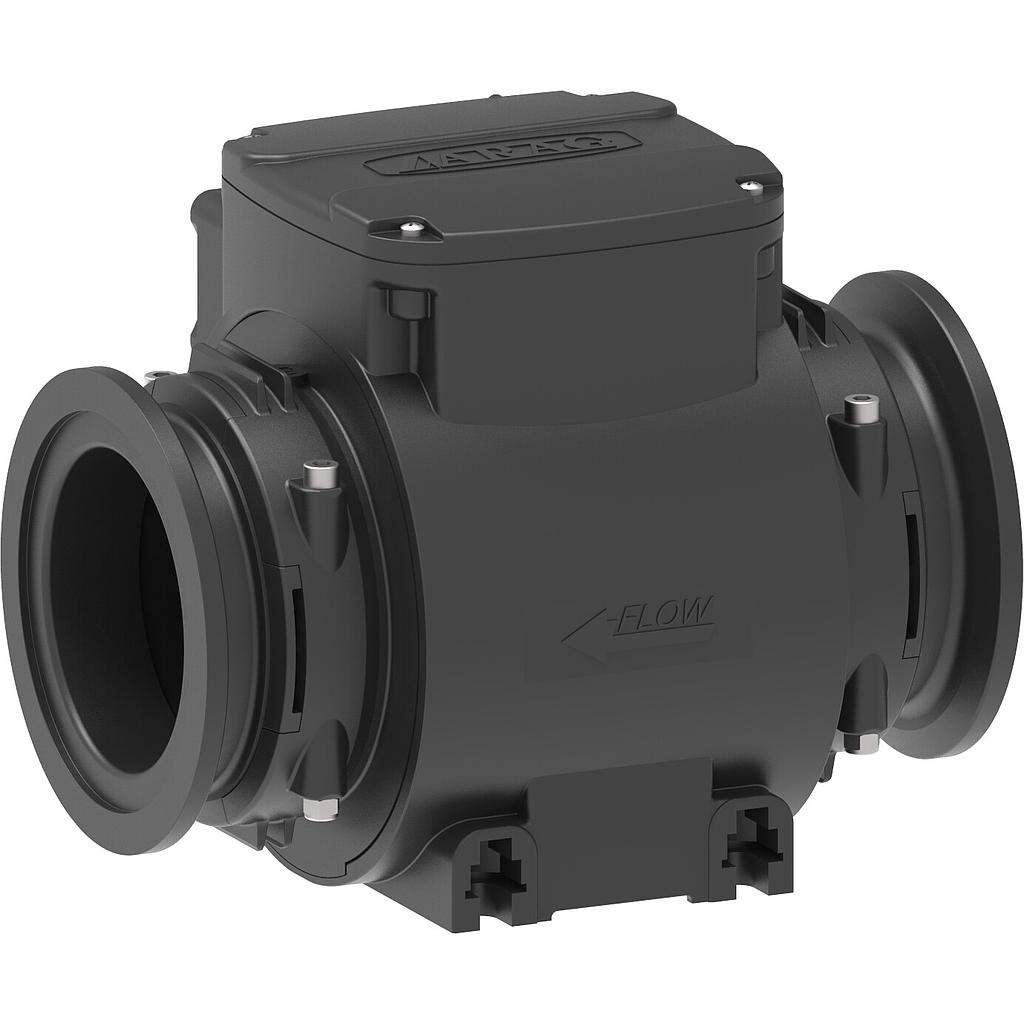

Arag ORION X Electromagnetic flowmeter with clamp coupling (60 ÷ 2500 l/min, 3"FP)

Specification

Code: 46299A91

Flow rate: 60 ÷ 2500 l/min

MAX Pressure: 5 bar

Connection: A-NET

Internal Passage: 75 mm

Pulses: 24 pls/l

- F -: 3" Full Port*

GENERAL FEATURES

Output only by flowing fluid

Parts in contact with fluid are in Nylon® reinforced with fiberglass and AISI 316 stainless steel

Operating status LED

TECHNICAL FEATURES

Benefits

No mechanical moving parts inside the pipe

Performances independent from fluid density and viscosity

Low sensitivity to turbulence

Electronic cleaning of conductive deposits

High precision

Low maintenance
