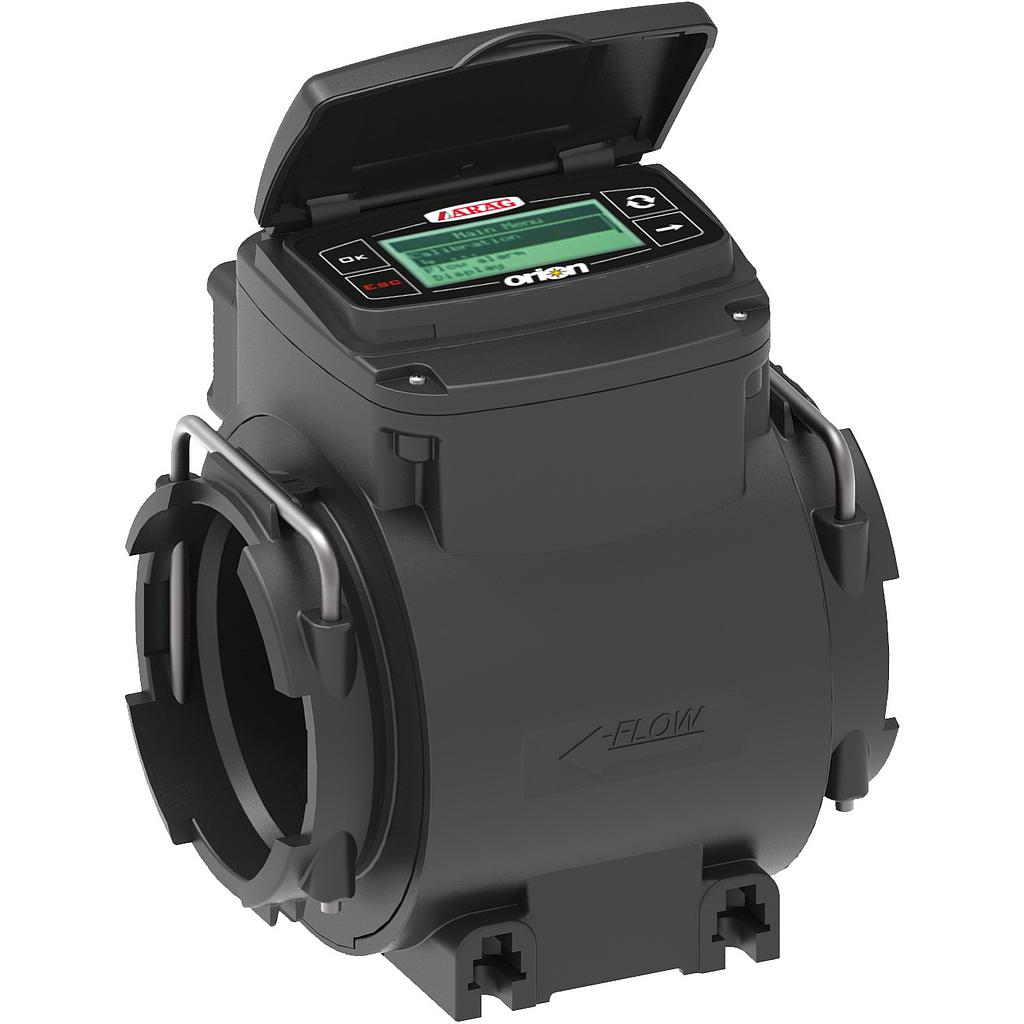

Arag ORION X VISUALFLOW Electromagnetic flowmeter with fork coupling (60 ÷ 2500 l/min, TF 9)

Specification

Code: 46299B90

Fork Coupling (T): T9 F

Flow rate: 60 ÷ 2500 l/min

MAX Pressure: 5 bar

Connection: A-NET

Internal Passage: 75 mm

Pulses: 24 pls/l

GENERAL FEATURES

Output for filling valve control

Output only by flowing fluid

Parts in contact with fluid are in Nylon® reinforced with fiberglass and AISI 316 stainless steel

Operating status LED

Graphic backlit display

TECHNICAL FEATURES

Benefits

No mechanical moving parts inside the pipe

Performances independent from fluid density and viscosity

Low sensitivity to turbulence

Electronic cleaning of conductive deposits

High precision

Low maintenance
