Arag ORION MULTIFLOW Multiflow Flowmeter (0.3 ÷ 6 l/phút, 20 bar)

Specification

Code: 4625AAGB1B1

Fork Coupling (T): T1

Flow rate: 0.3 ÷ 6 l/min

MAX Pressure: 20 bar

Connection: A-NET

INTRODUCTION

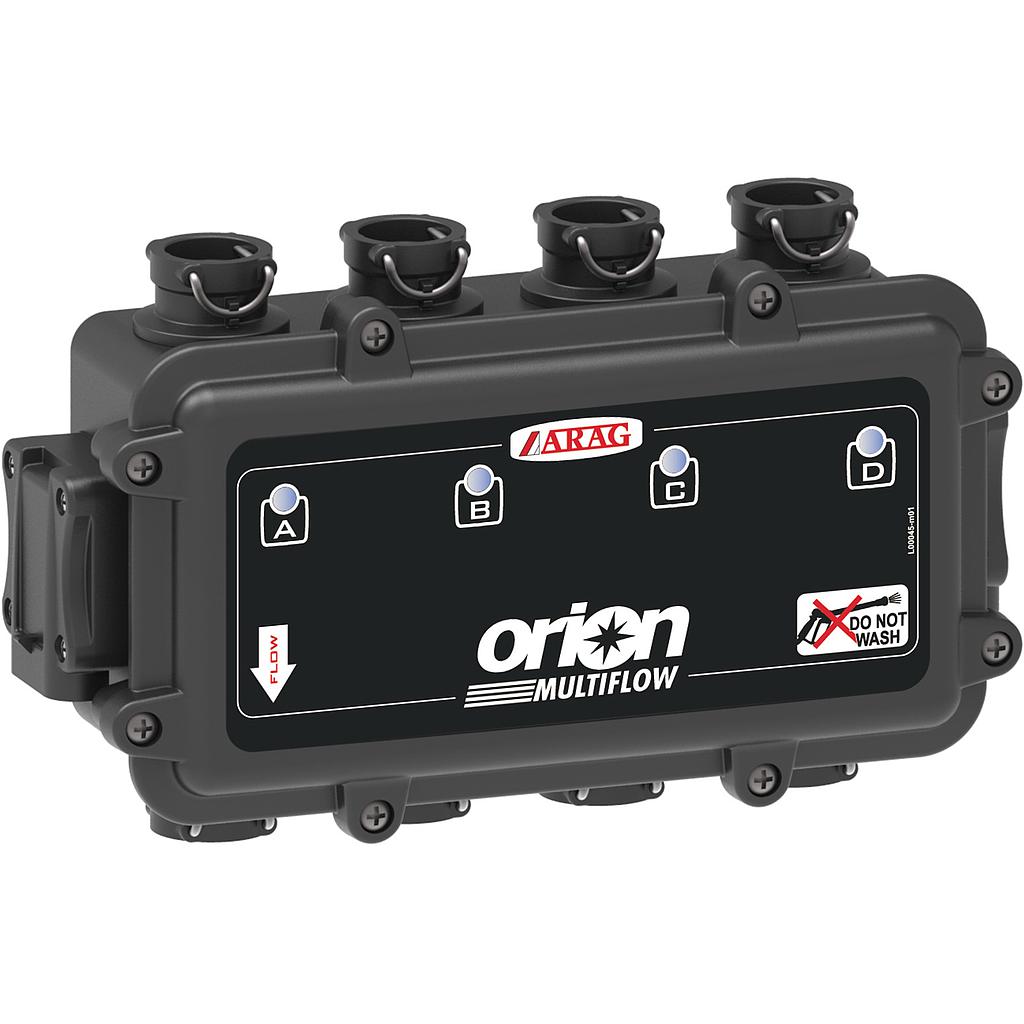

Orion Multiflow Flowmeter

Orion Multiflow is an electro-magnetic flowmeter with 4 channels designed to monitor liquid distribution systems.

The flowmeter is provided with a A-net port that allows its connection to the network with other flowmeters to monitor over 100 lines.

GENERAL FEATURES

 Four 0 ÷ 12 VDC pulse outputs with frequency proportional to flowrate

LED for status indication of each single channel.

TECHNICAL FEATURES

BENEFITS

No mechanical moving parts inside the pipe

Performances independent from fluid density and viscosity

Low sensitivity to turbulence

High precision

Low maintenance
