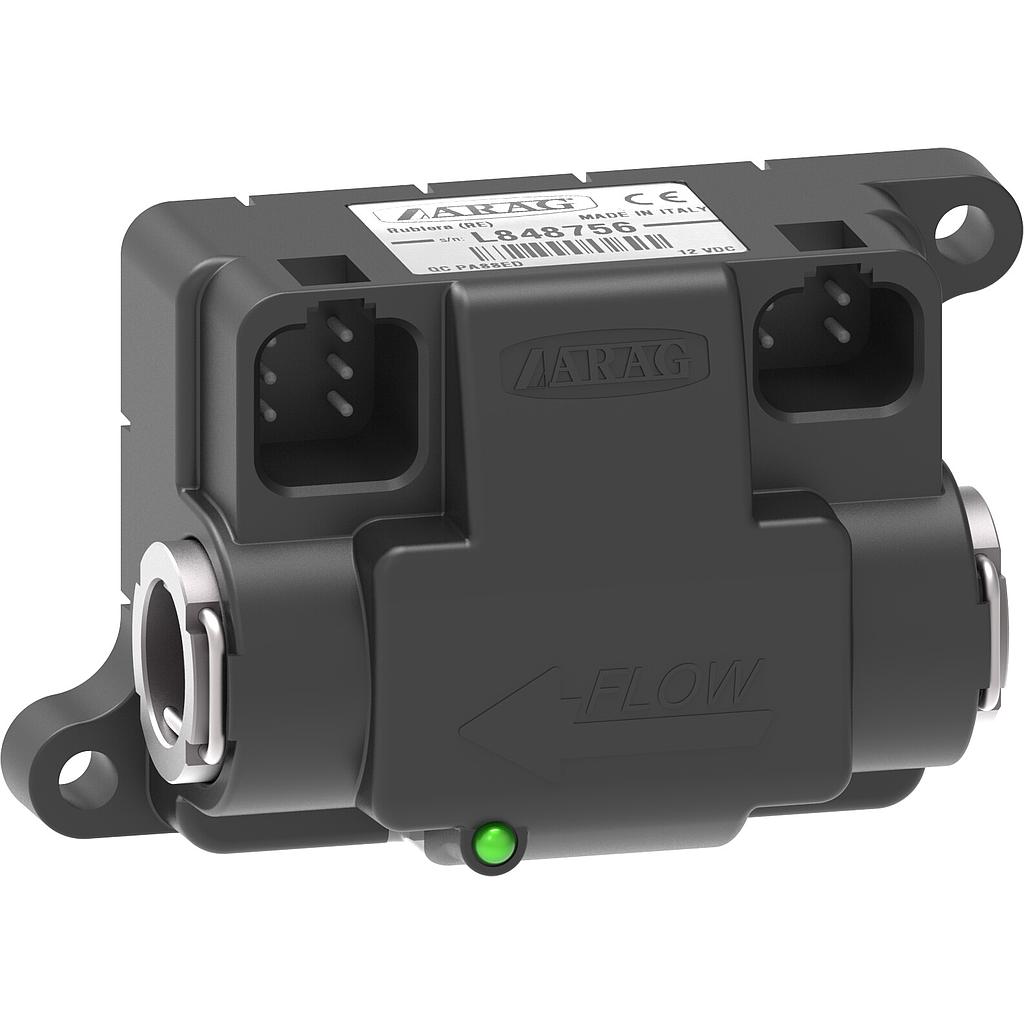

Arag ORION 3 PLUS Electro-magnetic flow meter with fork coupling (0.3 ÷ 12 l/min)

Specification

Code: 46204G

Fork Coupling (T): T1 F

Flow rate: 0.3 ÷ 12 l/min

MAX Pressure: 10 bar

Internal Passage: DN4 mm

Pulses: 10000 pls/l

Type: PPFV

INTRODUCTION

ORION 3 PLUS electro-magnetic flow meter with fork coupling

Orion 3 PLUS is an electromagnetic flowmeter designed to manage liquid distribution systems on seeders.

Several flowmeters can be connected via the CAN-Bus port to monitor all seeding lines.

Each Orion 3 can control a valve to manage the output flowrate.

TECHNICAL FEATURES

Integrated valve control (only mod. PLUS).

Output only by flowing fluid.

Operating status LED.

Pulse output with frequency proportional to the flowrate.
