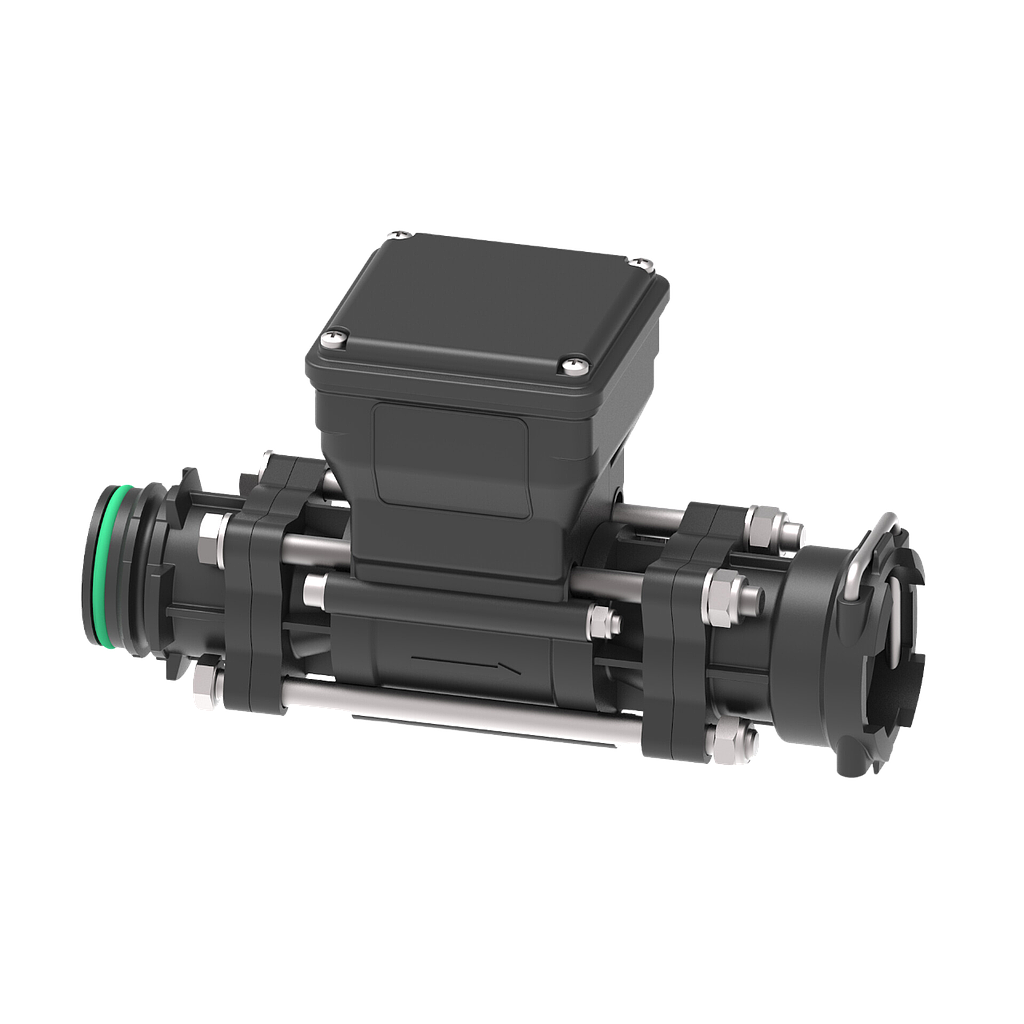

Arag ORION 2 Electro-magnetic flow meter with fork coupling (5 ÷ 100 l/min, 20 bar)

Specification

Code: 46211A3A5B5

Fork Coupling (T): T5 M/F

Flow rate: 5 ÷ 100 l/min

MAX Pressure: 20 bar

Pressure Drop: 0.5 bar

Internal Passage: 14 mm

Pulses: 600 pls/l

Type: Teflon

GENERAL FEATURES

Output only by flowing fluid

Parts in contact with fluid made of polypropylene and Stainless Steel 316

Operating status LED

TECHNICAL FEATURES

Benefits

No mechanical moving parts inside the pipe

Performances independent from fluid density and viscosity

Low sensitivity to turbulence

High precision

Low maintenance

Direct connection to control units
