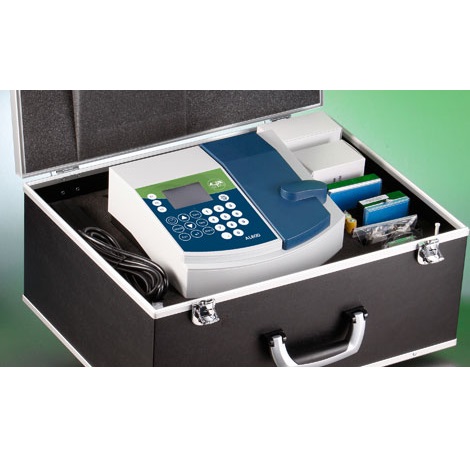

Aqualytic AL800 Portable Spectrophotometer

Wavelength range : 330 – 900nm

Meet the standards CE: EN 61326: 1997 + A1: 1998 + A2 + A3: 2003.

and European Union Council Directive: 89/336/CEE. and Low voltage : 73/23/CEE

Optical scale : -0.3 – 2.5Abs

Measure targets :Acid capacity K, Alkalinity, Aluminium, Ammonia, Arsenic, Boron, Bromine, Cadmium, Chlorine, Chloride, Chromium, COD,

Copper, Cyanide, Cyanuric acid, DEHA, Floride, Formaldehyde, Hardness, Hazen, Hydrazine, Hydrogenperoxide, Iodine, Iron, Lead,

Manganese, Molybdate, Nickel, Nitrate, Nitrite, Nitrogent-total, Ozone, Phenols, Phosphate-total, pH, Potassium, Silica, Absorption-coefficient,

Sulphate, Sulphite, Surfactants, TOC, Turbidity, Urea, Zinc.

Bright strip width : 10nm

Drifting : ±0.005Abs/h at 500nm

light loss : <5% tại bước sóng 340 – 400nm

Light source : Tungsten Halogen (6V,10W)

Display: LCD screen (7 lines, 21 characters).

Languages : English, French, German…

Memory: 1000 sets of data

Function: the keyboard has built-in sound, designed to resist acid and solvent erosion.

Connection interface: RS 232 port for connecting the printer and PC port for connecting computers, ASCII data, data 8; 1 start bit; 1 bit end.

Multi-purpose sample chamber: suitable for round cuvettes of 24mm, 16mm diameter; square cuvette 10 from 50mm

Source: Input port: 100-240V; 50-60Hz. Output: 12V ---- 30W. 2 AA / LR6 batteries for data storage without power.

Working conditions: 5-40oC, humidity 30-90%.

Dimensions (L x W x H): 270 x 275 x 150mm.

Weight: 3kg

Provide cover:

Spectrophotometer AL800

Cuvett has a lid, 48mm high, Ø24mm; set of 5 pieces / box. Code: 197629
