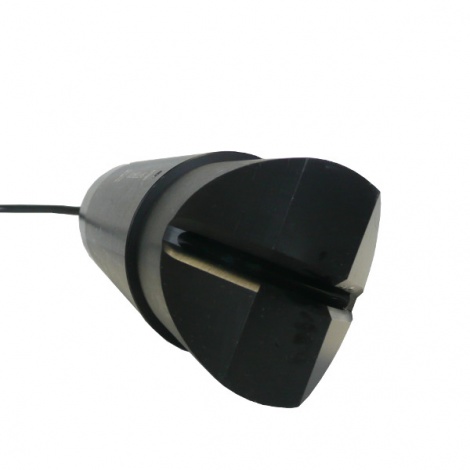

Aqualabo VB5 Sludge blanket digital sensor 7m bare wire (0-50 g/L, 0-4000 FAU, 0-100 %)

TECHNICAL SPECIFICATIONS :

Suspended Solid measure

Principle of measure: Optical IR (870 nm) based on IR absorption

Range of measure: SS : 0-50 g/L

Turbidity : 0-4000 FAU

Sludge blanket : 0-100 %

Resolution: SS : 0.01 g/L

Turbidity: 0.01 à 1 FAU

Sludge blanket : 0.01 à 0.1 %

Accuracy: SS< 10 %

Turbidity : +/- 5% (range 200-4000 FAU)

Sludge blanket : +/- 2%

Response time: < 35 secondes

Temperature measure

Principle of measure :NTC

Working temperature: -5.00 °C to + 60,00°C

Resolution: 0,01 °C

Accuracy: +/- 0.5 °C

Storage Temperature: -10°C to + 60°C

Degree of protection: IP 68

Signal Interface: Modbus RS-485 or SDI-12

Refreshment of the measure: Maximum < 1 seconde

Power supply: 5 to 28 volts

Consumption: Standby : 25 μA (5 V)

Average RS485 (1 measure/seconde) : 4.5 mA (5V)

Average SDI12 (1 measure/seconde) : 4.5 mA (5V)

Curent Pulse : 100 mA during 30 mS

Heating times : 100 ms

Sensor

Weight: 750 g (sensor)

Material: DELRIN, Nickel-plated brass, EPDM

Pressure max: 5 bars

Cable/ connexions: 9 armoured connectors, polyurethane jacket, bare-wires or waterproof Fisher connector

For specific range please check the attachment below!
