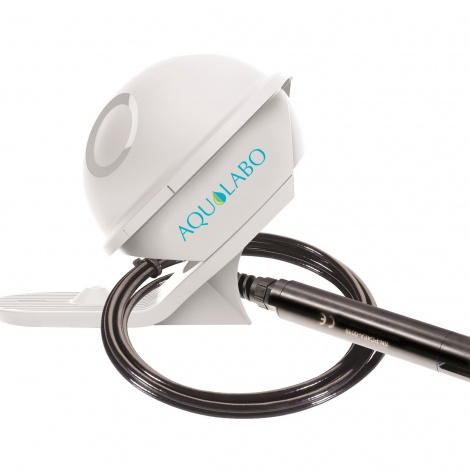

Aqualabo PF-ACC-C-00440 LoRa Module AquaMod' - Internal Antenna EU868 (Europe)

AQUAMOD’ MODULE SPECIFICATIONS

Autonomy: 2 years minimum, to more than 5 years according to application

Dimensions: 145 x 145 x 185 mm

Weight: 650 g

Protection: IP68

Digital Input

Digisens sensors

Parameters :

pH, ORP, Suspended Solid, Sludge blanket, Turbidity, Temperature, Conductivity, Salinity, Dissolved oxygen

Battery: Pack Lithium 3,6V 26 Ah

Security: Customizable SMS and email alerts (AquaMod’battery, AquaGat’ power supply, high / low sensor value, sensor fault ...)

Mechanical: User replaceable battery without tools

Temperature environnement: -10°C à +50°C

Sealing: By hand tightening, IP68 certified 1 week 1 m water. No tools needed

Norm: In compliance with the marking CE

LoRaWan network range: 3km in urban areas. 15km in rural areas (According to antenna and gateway)

Data acquisition:From 5 minutes

Available version: Aqua Mod’ EU 868, Aqua Mod’ US 915, Aqua Mod’ AU 915

For specific range please check the attachment below!

Datasheet

Datasheet Aqua Connect_Module AquaMod

Datasheet Aqua Connect

Manual

User Manuel Aqua Connect_Cloud solution

User Manuel Aqua Connect_Start guide

User Manuel Aqua Connect
