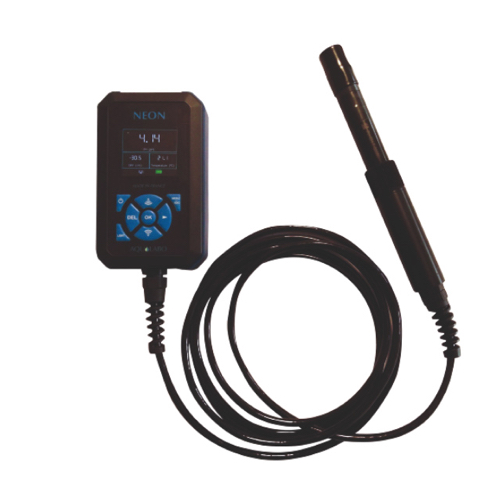

Aqualabo NEON-PHEHT Handheld pH Meter (0.00 ~ 14.00 pH; -1000.0 ~ +1000.0 mV; 0.00 – 50.00°C; PHEHT sensor; 15 m)

Measuring range

pH: 0.00 to 14.00 (compensated at 25°C)

Redox: -1000.0 to +1000.0 mV

Temperature: 0.00 – 50.00°C

Resolution

pH: 0.01

Redox: 0.1 mV

Temperature: 0.01°C

Accuracy

pH: +/- 0.1 pH

Redox: +/- 0.2 mV

Temperature: +/- 0.5°C

pH calibration: On 3 points

Recording :30 000 points l Wifi transfert

Functions

Auto Off: 2, 5, 10, 15, 30 min

Light intensity: 5 min max

Contrast management

Main measurement zoom function

Recording: On-site, interval recording (time interval)

Indication of measurement stability

Measurement function that freezes with measurement stability condition

Power supply: 3 battery 1.5V AA; 848 h (without recording); 225 h (1 recording/minute)

Technical Data NEON housing

Weight: 880 g

Dimensions (H x l x e): 146 x 88 x 33

Protection class: IP 67

Operating temperature: -5 to 50 °C

Storage temperature: -10°C-60°C

Screen: LCD graphic l Backlight

Material: ABS

Sensor connexion: Cable gland type PG9

Specification PHEHT sensor

Cable: 15 m

Dimensions

Bottom: diameter 21 mm; Length 92 mm

Top: diameter 27 mm; Length 103 mm

Sensor length mounted: excluding cable gland 210 mm

Length with cable gland 260 mm

Protection class: IP68

Operating temperature: 0 to 50 °C

Storage temperature: - 10°C to + 60°

Pressure max.: 5 bars

Material: PVC, POM-C, pH glass, platinum, polyurethane
