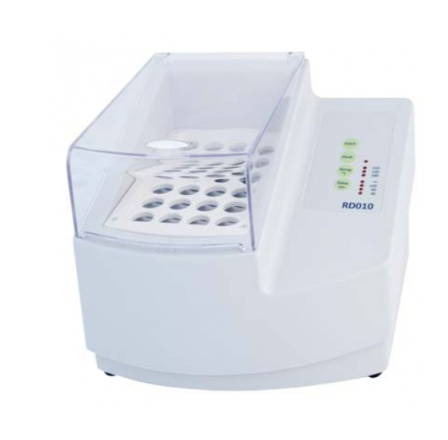

Aqualabo 1RD010 Heating Reactor 24 places (550W, 20°C-150°C in 12 min)

Power connection: 230 V / 50-60 Hz or 115 V / 50-60 Hz

Power: 550 W

Dimensions: 248 x 219 x 171 mm

Weight: 3,9 kg

Material: ABS

Innerhousing: PBT

Protective grid: PPS

Lid: PC

Heating block: Aluminum

Number of locations: 24

Temperature selection: 100 / 120 / 150 °C

Temperature control: Pt100 class A

Stability of the temperature: ± 1 °C at Pt100

Timer: 30 / 60 / 120 / min. and unlimited (∞)

Heating speed: from 20°C to 150°C in 12 min

Overheating protection: 190°C at thermoblock

Pilotage: microprocessor

Beeper: max. 88 dB

Ambient conditions: 10 – 40 °C max. 85 % relative humidity

Compliance: CE
