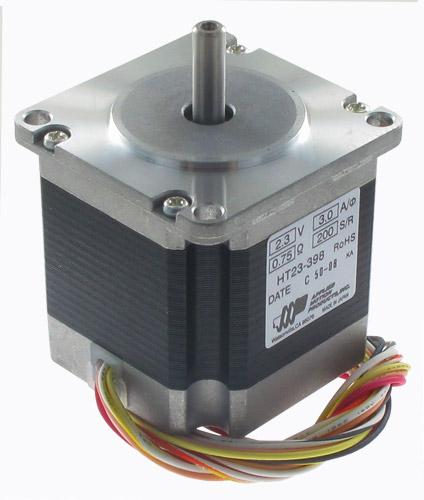

Applied Motion HT23-398 High Torque 2.13in 177.0 TORQUE
ManufacturerApplied Motion(View more products from this manufacturer)
ModelHT23-398
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 56.4 mm
Height: 56.4 mm
Length: 54.102 mm
Connection: Unipolar, Bipolar
Dimensions: 54.102 mm L x 56.4 mm W x 56.4 mm H
Step Angle: 1.8 deg
Wire Gauge: 22 AWG
Cable Length: 18 in
Rotor Inertia: 1.64 oz-in-sq
Current Rating: 2.12 A
Voltage Rating: 3.3 V
Frame Size - NEMA: NEMA 23
Pin or Wire Count: 8
Minimum Holding Torque: 125 oz-in, 177 oz-in
