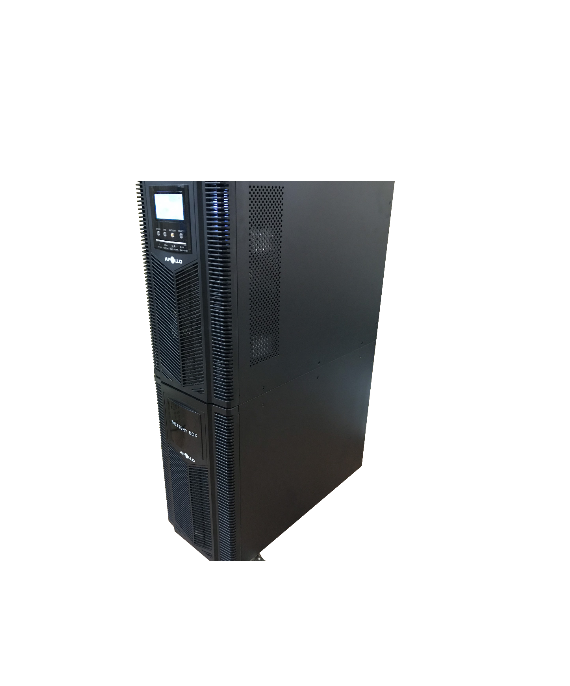

Apollo AP906FC Frequency Converter

Power Factor: 0.6

Power: 6000 VA / 3600 W

Frequency: 50/60 Hz (configurable)

INPUT

Rated Voltage: 208 V / 220 V / 230 V / 240 V AC

Voltage Range: 170 V AC – 280 V AC

Frequency: 50/60 Hz (configurable)

OUTPUT

Power: 6000 VA / 3600 W

Rated Voltage: 208 V / 220 V / 230 V / 240 V AC

Frequency: 50/60 Hz (configurable)

Waveform: Pure sine wave

Efficiency

Up to 95% (normal mode)

Up to 80% (inverter mode)

Switching Time: 2 – 7 ms, max 10 ms

Battery Recharge Time: 6 – 8 hours to recover 90% load

PROTECTION FEATURES

Automatic bypass mode: When UPS fails or overload occurs

ENVIRONMENT

Humidity: 20 – 90% RH at 0 – 40°C

Noise Level: ≤ 45 dB (1 m)

MANAGEMENT

USB / RS-232 / SNMP: Supports Windows 98/2000/2003/XP/Vista/2008/Win7/Win8
