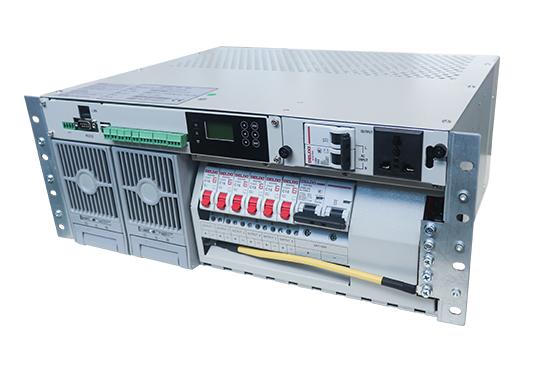

Apollo AP4U-48100 Embedded DC power supply system (48VDC, 100A)

System

Cooling method: Fans

Installation method: 19-inch rack or embedded cabinet mount

Incoming way: Front

Protection degree: IP20

Maintenance path: Front

AC Distribution

Input: 220 Vac single phase

Inputout voltage: rating voltage：220 Vac 85-290Vac

Frequency: 45–65 Hz，Rating Frequency：50/60 Hz

Input breaker: 1 ×63A/2P

DC Distribution

Output voltage: 42–58 Vdc，rating voltage：53.5 Vdc

Maximum capacity: 6 kW

Battery breaker: 1×100 A/2P

Output: 6×16A/1P

Rectifier Module

Model: AP4850/AP4850 Plus

Rated power: 176–290  Vac

Dimension (W x D x H): 85.3 mm × 287 mm × 132.3 mm

Efficiency: > 96%

Monitoring Module

Model: 2433

Communication port: RS232,    RS485

Environment

Operating temperature: -5℃ ~ 40℃

Storage temperature: -40℃ ~ +70℃

Humidity: ≤90% RH

Altitude: ≤2000M
