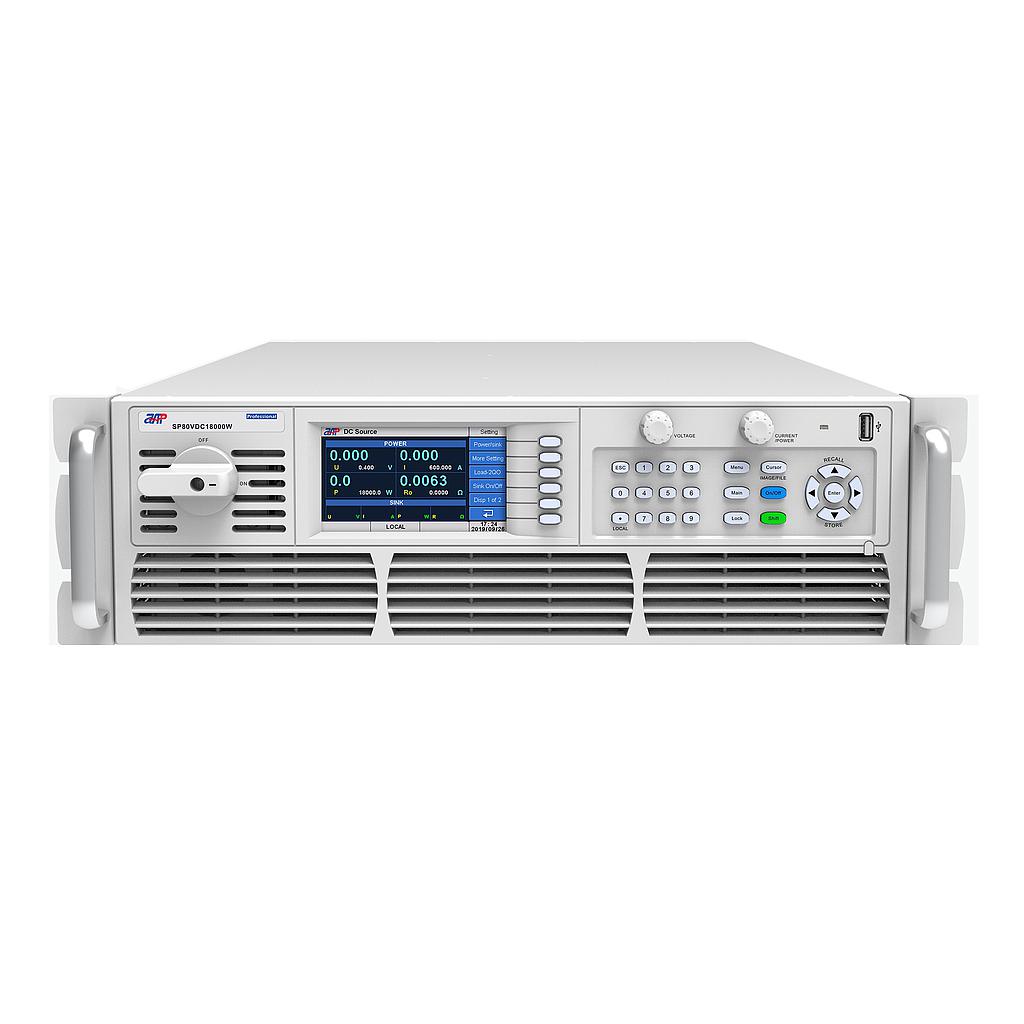

APM SP80VDC6000W-EPSG Wide-range High-power Programmable DC Power Supply (80V, 200A, 6000W)

Input Voltage: For different input voltage standard option must be specified at the time of order as they are installed at the factory prior to shipment

187~305VAC

340~480VAC

Output

Rated Voltage: 80V

Rated Current: 200A

Rated Power: 6000W

Size: 3U / 423.0x133.0x718.0 mm & 27kg

Ripple

Voltage: <180mVpp, <15mVrms

Current: <100mArms

Response

Voltage increase: <15ms (No Load) <30ms (Full Load)

Voltage Drop: <850ms (No Load) <15ms (Full Load)

Internal Resistance: 0~12Ω
