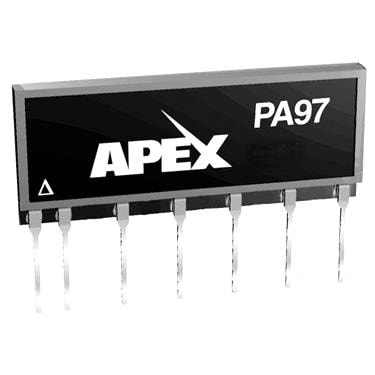

Apex Microtechnology PA97PC Op Amps - Operational Amplifiers Linear OpAmp, 900V, 10mA

Shutdown: No Shutdown

Unit Weight: 2.400 g

Mounting Style: Through Hole

SR - Slew Rate: 8 V/us

Number of Channels: 1 Channel

Supply Voltage - Max: 900 V

Supply Voltage - Min: 100 V

Ib - Input Bias Current: 2 nA

Ios - Input Offset Current: 500 pA

Output Current per Channel: 10 mA

Vos - Input Offset Voltage: 5 mV

Maximum Dual Supply Voltage: +/- 450 V

Minimum Dual Supply Voltage: +/- 50 V

GBP - Gain Bandwidth Product: 1 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C

CMRR - Common Mode Rejection Ratio: 98 dB
