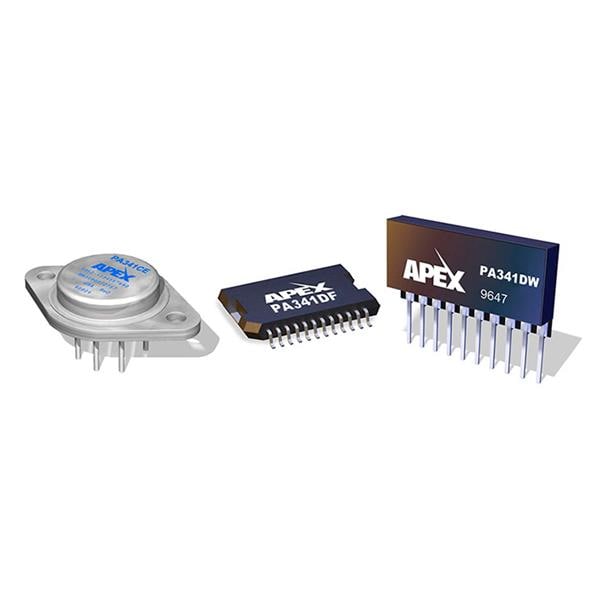

Apex Microtechnology PA341DF Operational Amplifiers IC OpAmp 350V, 120mA Peak

Shutdown: No Shutdown

Unit Weight: 2 g

Mounting Style: SMD/SMT

SR - Slew Rate: 32 V/us

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Supply Voltage - Max: 175 V

Supply Voltage - Min: 10 V

Ib - Input Bias Current: 200 pA

Ios - Input Offset Current: 200 pA

Output Current per Channel: 60 mA

Vos - Input Offset Voltage: 40 mV

GBP - Gain Bandwidth Product: 10 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

CMRR - Common Mode Rejection Ratio: 115 dB
