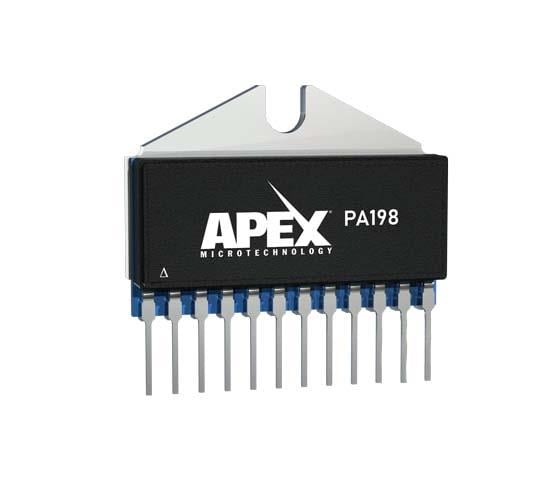

Apex Microtechnology PA198DP Operational Amplifiers Linear OpAmp, 450V, 2000V/us, 2MHz Power Bandwidth

Shutdown: No Shutdown

Output Type: MOSFET

Amplifier Type: Differential

Mounting Style: Through Hole

SR - Slew Rate: 2 kV/us

Number of Channels: 1 Channel

Supply Voltage - Max: 225 V

Supply Voltage - Min: 15 V

Ib - Input Bias Current: 5 pA

Operating Supply Current: 22.5 mA

Ios - Input Offset Current: 10 pA

Output Current per Channel: 200 mA

Vos - Input Offset Voltage: 500 uV

GBP - Gain Bandwidth Product: 394 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 3 uV/sqrt Hz
