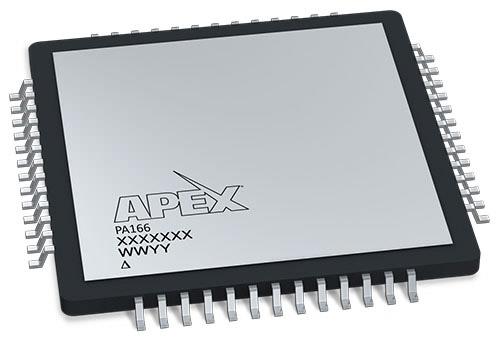

Apex Microtechnology PA166PQ Power Operational Amplifiers Dual Channel High Voltage Power Operational Amplifier IC

Shutdown: Shutdown

Input Type: Differential

Technology: Si

Amplifier Type: Power

Mounting Style: SMD/SMT

SR - Slew Rate: 35 V/us

Moisture Sensitive: Yes

Number of Channels: 2 Channel

Supply Voltage - Max: 205 V

Supply Voltage - Min: 20 V

Ib - Input Bias Current: 200 pA

Ios - Input Offset Current: 50 pA

Output Current per Channel: 4 A

Vos - Input Offset Voltage: 2 uV

GBP - Gain Bandwidth Product: 20 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 13 nV/sqrt Hz
