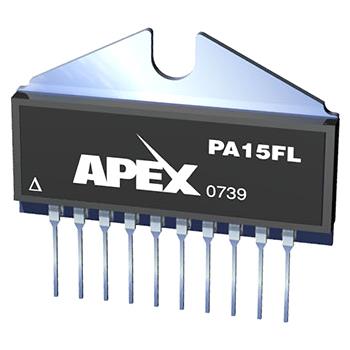

Apex Microtechnology PA15FLA Operational Amplifiers Linear OpAmp, 450V, 0.2A

Shutdown: No Shutdown

Unit Weight: 10 g

Mounting Style: Through Hole

SR - Slew Rate: 30 V/us

Number of Channels: 1 Channel

Supply Voltage - Max: 225 V

Supply Voltage - Min: 50 V

Ib - Input Bias Current: 2 nA

Operating Supply Current: 2 mA

Ios - Input Offset Current: 200 pA

Output Current per Channel: 200 mA

Vos - Input Offset Voltage: 3 mV

GBP - Gain Bandwidth Product: 5.8 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C

CMRR - Common Mode Rejection Ratio: 98 dB
