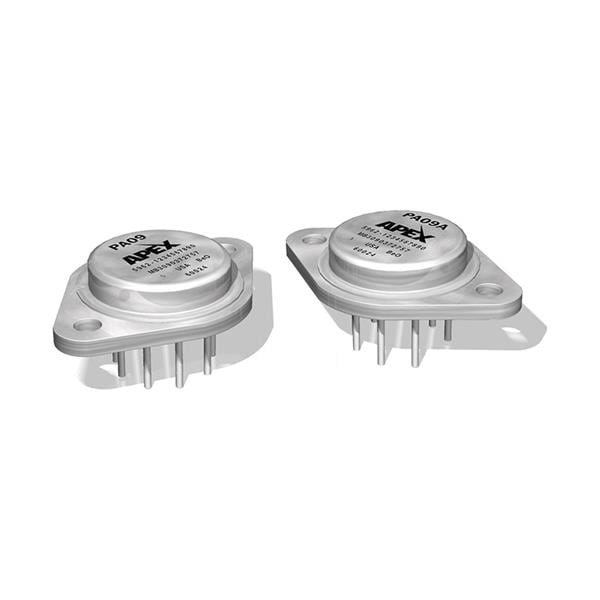

Apex Microtechnology PA09A Operational Amplifiers Linear OpAmp, 80V 5A A Grade

Shutdown: No Shutdown

Unit Weight: 15 g

Mounting Style: Through Hole

SR - Slew Rate: 220 V/us

Number of Channels: 1 Channel

Supply Voltage - Max: 80 V

Supply Voltage - Min: 40 V

Ib - Input Bias Current: 20 pA

Ios - Input Offset Current: 10 pA

Output Current per Channel: 4.5 A

Vos - Input Offset Voltage: 500 uV

GBP - Gain Bandwidth Product: 150 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C

CMRR - Common Mode Rejection Ratio: 104 dB
