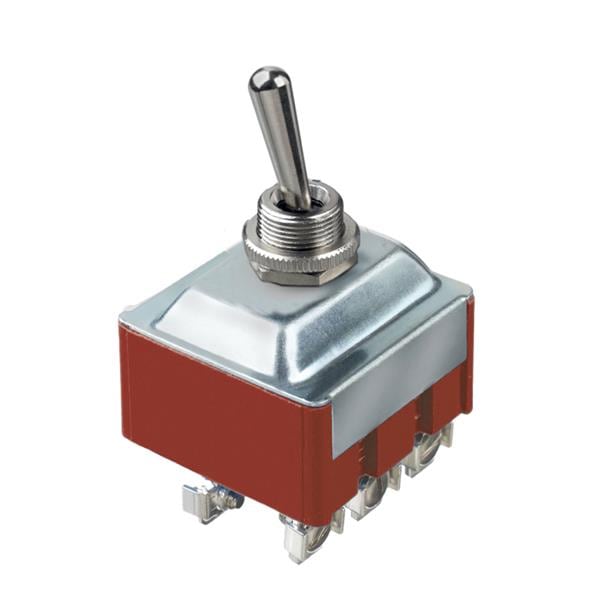

APEM 651H High Amperage Toggle Switch 3PST 15A 125V 17.5mm

Life: 10000 Cycle

Actuator: Bat

Illuminated: Non-Illuminated

Unit Weight: 68.375 g

Bushing Size: M12

Contact Form: 3PST

Mounting Type: Bushing

Actuator Style: Bat

Current Rating: 15 A

Mounting Angle: Vertical

Mounting Style: Panel Mount

Actuator Length: 17.5 mm

Contact Plating: Silver

Switch Function: ON - OFF

Contact Material: Silver / Nickel Alloy

Housing Material: Polyester

Actuator Material: Brass

Termination Style: Screw

Voltage Rating AC: 250 VAC

Voltage Rating DC: 24 VDC

Flammability Rating: UL 94 V-0

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 55 C

Minimum Operating Temperature: - 20 C
