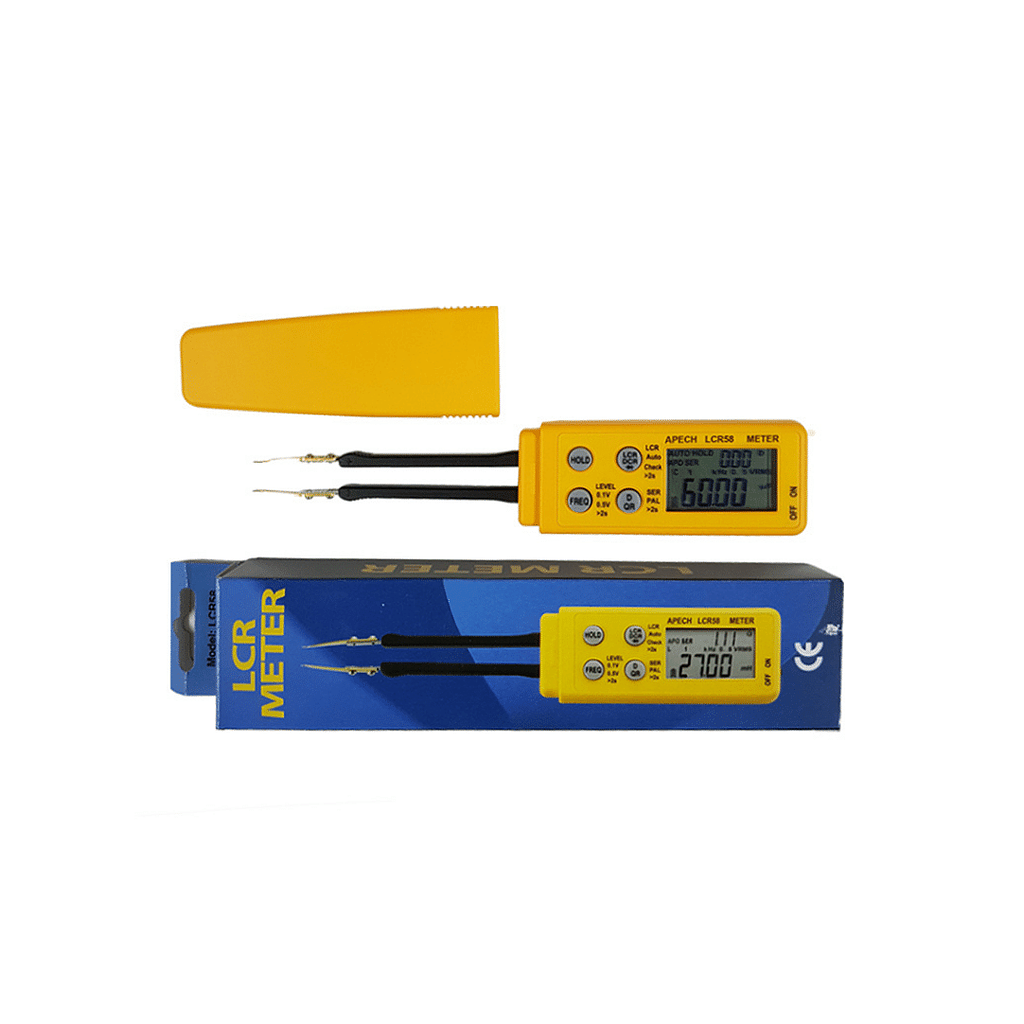

APECH LCR-58 Tweezer LCR Meter

Inductance Measurement

Inductance ranges: 600 μH / 6000 μH / 60 mH / 600 mH / 6 H / 60 H / 200 H

Accuracy: ±1% (100 Hz, 120 Hz, 1 kHz, 10 kHz)

Capacitance Measurement

Capacitance ranges: 600 pF / 6 nF / 60 nF / 600 nF / 6 μF / 60 μF / 600 μF / 6 mF

Accuracy: ±1% (100 Hz, 120 Hz, 1 kHz, 10 kHz)

AC Resistance (R) Measurement

Resistance ranges: 60 Ω / 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 20 MΩ

Accuracy: ±1% (100 Hz, 120 Hz, 1 kHz, 10 kHz)

DC Resistance (DCR) Measurement

DCR ranges: 60 Ω / 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 20 MΩ

Accuracy: ±1%

Continuity Test: Yes

Diode Test: Yes

Optional Signal Amplitude

0.1 V / 0.5 V RMS

Measurement Mode

Serial / Parallel Equivalent Mode

D (Dissipation Factor) / Q (Quality Factor) / R (Equivalent Serial or Parallel)

Dimensions: 205 mm × 40 mm × 24.5 mm

Weight: 110 g

Included Accessories

Main unit

1 × Battery
