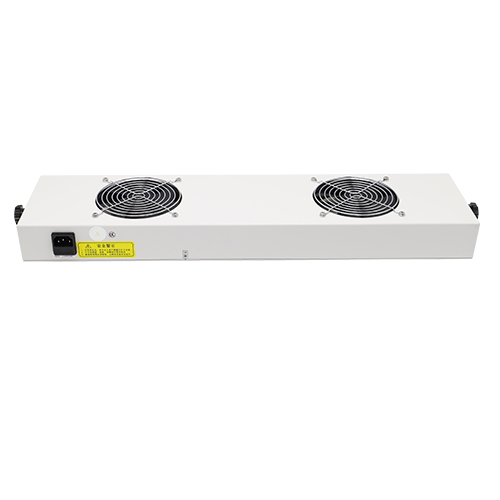

AP&T AP-DC2452-60C Two Fan Overhead Ionizing Air Blower (±DC4000~DC7000V)

Input voltage: AC220V/50Hz or 110V/60Hz

Power: ＜15W

Working voltage: ±DC4000-DC7000V

Ion emission: Steady state DC

Transmitting electrode: Tungsten alloy

Discharge structure: Uncoupled electrical contact (discharge cylinder)

Discharge range: 600*300*750mm（L*W*H）

Discharge speed: ≤3s (450mm from the center of the air outlet)

Ion balance: -15V ～ + 15V (450mm from the center of the air outlet)

Alarm indication: Power indicator is on and working normally

Air volume(adjustable): ≤2*89.1CFM

Audio noise: ≤55db (150mm away from the air outlet)

Ozone thickness: ≤0.05ppm (150mm away from the air outlet)

Operating temperature: 0-50℃

Working humidity: 30-70%RH

Dimensions: 640*175*118mm（L*W*H）

shell material: Aluminum Dusting

Installation accessories: 1 L-shaped aluminum dusting mounting bracket, 1 pair of bakelite screw handles (M6 × 12)

Net weight:3.5kg

Quality assurance: CE
