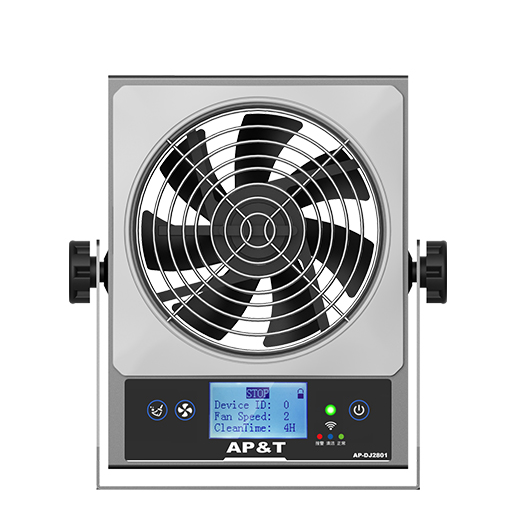

AP&T AP-DJ2801 Desktop Ionizing Air Blower (8 electrode pins, ＜12W, 1 fan)

Input voltage: DC24V (RJ45 interface)

Input current: ＜0.45A DC

Output voltage: DC±4.5KV - ±5.5KV

Power: ＜12W

Ion emission: DC

Emitter electrode: Tungsten alloy

Discharge range: 750x300mm

Discharge speed: ≤2.0s (300mm from the air outlet)

Ion balance: ≤/±10V/

Alarm indication:

Power on/clean operation-blue light flashes

Normal work-green light (always in moritoring state)

Fan alarm - red light is always on

High voltage abnormally-red light flashes

Blue light flashes during infrared debugging

Air volume: ≤93CFMx1

Noise: Single air outlet ≤45dbA (1000mm away from the air outlet)

Ozone thickness: ≤0.05ppm (150mm away from the air outlet)

Communication method: RS485

Operating temperature: 0-50℃

Working humidity: ＜70%RH

Dimensions: 178x67.6x194.5mm (LxWxH)

Blower material: aluminium powder spraying

Packing accessories: 1 pair of U-shaped iron powder spraying mounting brackets, 1 pair of bakelite screw handles (M5x8)

Adapter power:

Input: AC100-240V, 50/60Hz

Output: DC24V 2A (dual RJ45 interface)
