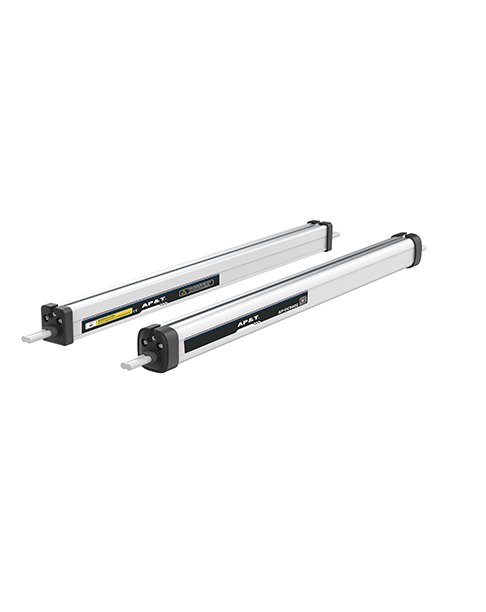

AP&T AP-DC5602 DC Ion Bar (DC±10000-12000V)

Working voltage: DC±10000-12000V

Power: ＜ 10W

Ion emission: DC

Emitter electrode: Tungsten

Discharge structure: No coupling electrical contact

Discharge range: L*H：（Bar length-135mm）*100mm

Installation distance: 30 → 100mm

Discharge speed: ≤ 2.0s（Discharge distance 100mm）

Ion balance: -50V → +50V（AVG value）

Working temperature: 0℃ -50℃

Working humidity: ＜ 70%

Dimensions: L*W*H：{360,510,660 → 3060mm}*34.5mm*38.5mm

Bar material: Flame retardant PVC, AL

Packaging accessories: M5×20 Hexagonal mounting bolts / Nuts

Power supply: AP-DY7211/AP-DY7221

High voltage vable length: 2.5m（Customizable up to 5m）
