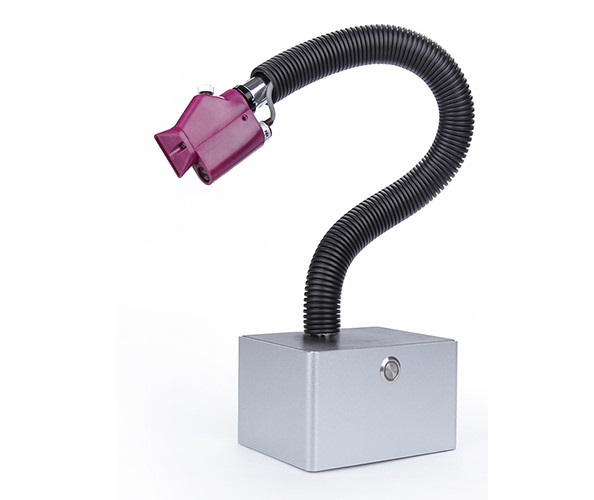

AP&T AP-AZ3202 Anti Static Device Air Nozzle Static Dissipative Snake (AC 4.6KV)

Specification

Input voltage: 220V/50Hz or 110V/60Hz

Output voltage: AC 4.6KV

Power: 30W

Working distance: 100－400mm

Ion balance: ≤|±35V|

Discharge: ≤2S

Working temperature: 0℃-50℃

Working humidity: ＜70%

Noise: ＜70dB

Net weight: Appr. 2.6kg(Photoelectric inductive switch excluded)

Net weight: Appr. 3kg(Photoelectric inductive switch included)

Gross weight: Appr. 3.3kg(Photoelectric inductive switch excluded)

Gross weight: Appr. 3.7kg(Photoelectric inductive switch included)

Medium used: Clean pressed air

Air connector: Ф8mm

Pipe length: 525mm

Base box Dimension: 163mm(L)*126mm(W)*90mm(H)

Dimension: 163mm(L)*126mm(W)*700mm(H)

Housing material: Aluminum alloy

Cord length: 1.8M
