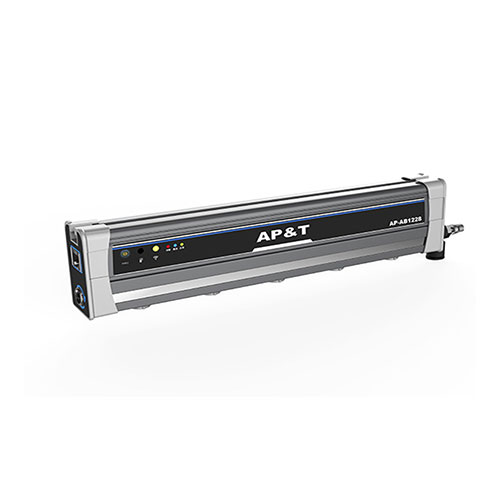

AP&T AP-AB1228 High Speed Intelligent Self-balancing Ion Bar (≤0.6MPa)

Input voltage: DC 24V

Input Current: < 600mA

Power: 10W

Output voltage: ±5000V-±6500V

Ion emission: Pulse AC

Emitter electrode: Tungsten alloy

Discharge structure: Resistance coupling

Output frequency: 5,10,30,55,105Hz; (factory setting: 55Hz)

Duty factor: 5%—95%

Discharge range: L*W*H:{275-2975(Needle spacing 50mm)}*300*1000mm

Installation distance: 100→1000mm

Ion balance: ≤|±30V|(AVG)

Discharge speed: ≤2S

Condition monitoring: RS485 communication (can be connected in series for network monitoring)

Air pressure: ≤0.6MPa

Compressed air connector: Φ8-G1/8 grey

Media used: Clean compressed air

Working temperature: 0℃-50℃

Working humidity: < 70%

Dimensions: L*W*H:{275-2975(Needle spacing 50mm)}*36*68.2mm

Bar material: Flame retardant PVC,ABS,SUS,W

Packaging accessories: 180°rotatable mounting angle

Power supply : GRT-240200: DC24V 2A, dual network port output, 123*61*40.5mm (L*W*H)

Power cord: 2.5m
