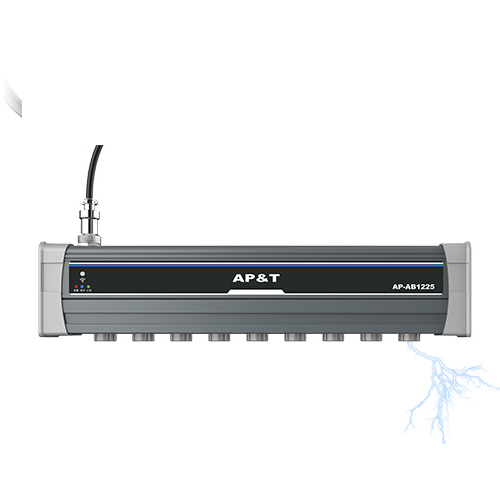

AP&T AP-AB1225 Intelligent Pulse AC Ion Bar

Input voltage: DC 24V (Industrial control computer of field equipment)

Input Current: ＜200mA

Power: ＜5W

Output voltage: DC±5.5KV

Ion emission: Pulse AC

Emitter electrode: Tungsten alloy

Output frequency: 5,10,30,55Hz；(Factory settings：55Hz)

Duty factor: 5%—95%

Discharge range L*W*H: {200, 225, 250 -300mm (Needle spacing 25mm)}*200*100mm

Installation distance: 30→100mm (Static elimination effect can be adjusted)

Ion balance: ≤|±30V|（AVG）

Discharge time: ≤1S（Test distance100mm）

Status indication:

Green light-normal operation

Blue light-standby

Blue light flashing-debugging / cleaning

Red light-abnormal high voltage

Operating temperature: 0℃-50℃

Working humidity: ＜70%

Dimensions L*W*H: {200 , 225 , 250-300mm(Needle spacing 25mm)}*36*68.2mm

Bar material: Flame retardant PVC、ABS、SUS、W

Installation accessories: M5-12*12*4 square nut; DC24V high flexible towline power cord 1500mm

Certification: CE
