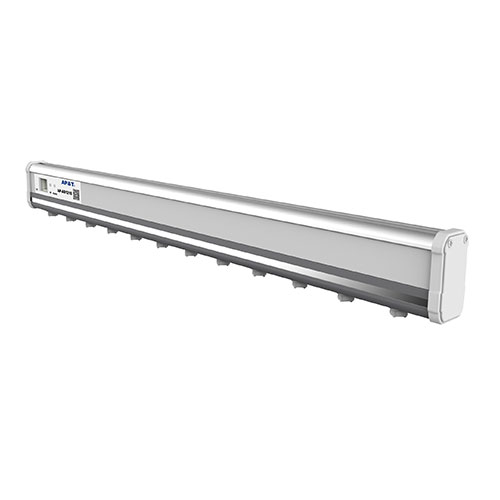

AP&T AP-AB1216 Air Source AC Pulse Ion Bar (±5000V)

Input Voltage: DC 24V

Input current: ＜600mA

Power: 10W

Working Voltage: ±5000V

Working method: Pulse AC

Emitter electrode: SUS

Discharge structure: Resistance coupling

Output frequency: 1,3,5,10,20,30,50Hz；(Factory setting:30Hz)

Duty Ratio: 10%—90%

Working range:L*W*H：{385-410（Probe distance 25mm）；460-2960（Probe distance 50mm）}*300*1000mm

Working distance: 100→1000mm

Ion balance: ≤|±30V|（AVE）

Discharge speed: ≤2S

Warning indicate: Power input indicator，High Voltage indicator（Green is normal，Red is abnormal）

Status monitoring: Series network monitoring / wireless monitoring

Airflow pressure: ≤0.6MPa

air source connector With throttle valve: Φ8-G1/8 Black

Working temperature: 0℃-50℃

Working humidity: ＜70%

Dimension: L*W*H：{385-410（Probe distance25mm）；460-2960（Probe distance50mm）}*35*78.4mm

Bar body material: Flame retardant PVC、ABS、AL、SUS

Accessories: Flexible 180° install bracket

Power adapter: GRT-240200： DC24V 2A，Dual network port output，123*61*40.5mm（L*W*H）

Power adapter cable: length: 2.5m

Certificate: CE
