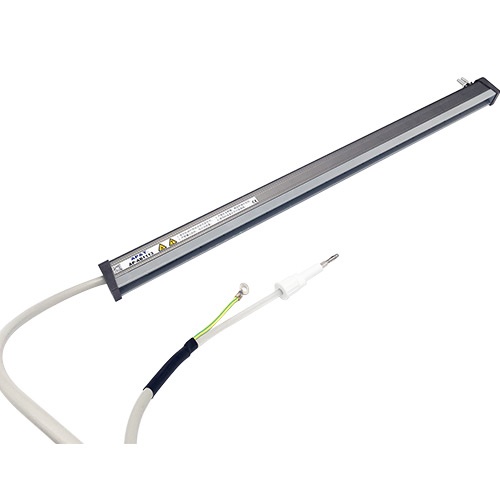

AP&T AP-AB1113 Anti-shock AC Ion Bar (AC7000V)

Working voltage: AC7000V

Power: 20W

Ion emission: Power frequency communication

Transmitting electrode: Tungsten

Discharge structure: Resistance coupling

Installation distance: 30→100mm

Ion balance: ≤|±150V|（AVE）

Dissipation speed: ≤1.0S（working distance100mm）

Operating temperature: 0°C - 50°C

Working humidity: ＜70%

Dimensions: L*W*H（150mm→3000mm）*21mm*32.4mm

Rod material: Flame retardant PVC, AL

Mounting accessories: M4×20 hex mounting bolts

Supporting power supply: AP-AY1504/ AP-AY2504

High-voltage cable length: 2.5m (can be customized according to requirements, the longest size is 10m)

Certificate: CE
