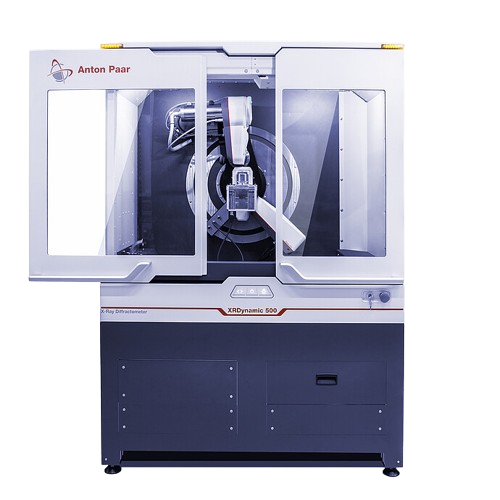

Anton Paar XRDynamic 500 Automated Multipurpose Powder X-Ray Diffractometer (Primux 3000, 5.5 kW)

X-ray source

Source type: Primux 3000

X-ray generator: Up to 3 kW

Tube voltage / current: 20 kV to 60 kV / 2 mA to 50 mA

Goniometer

Configuration: Vertical θ/θ geometry

Measurement radius: 360 or 400 mm

Maximum usable angular range: -95° to 162.5° 2θ

Minimum step size: 0.0001°

2θ linearity: ≤0.01°

Maximum angular speed: 15 °/sec

Maximum angular resolution: 0.021° (FWHM of 1st LaB₆ peak)

Detectors:

Solid-state hybrid pixel detectors:

Pixos 2000 detector (0D and 1D mode)

Pixos 2000 CdTe detector (0D and 1D mode) for high-energy X-rays

Exterior dimensions (w x d x h): 1350 mm x 1160 mm x 1850 mm

Weight (not including optional accessories): 750 kg

Power supply:

3-Phase: 3/N/PE AC 400/230 V, 50…60 Hz, 25 A

1-Phase: 208…240 VAC, 50…60 Hz, 36 A

Maximum power consumption (without additional controllers for optional equipment): 5.5 kW

Cooling water supply:

Flow rate: > 3.6 L/min

Pressure: 4.5 – 6 bar

Temperature: < 25 °C
