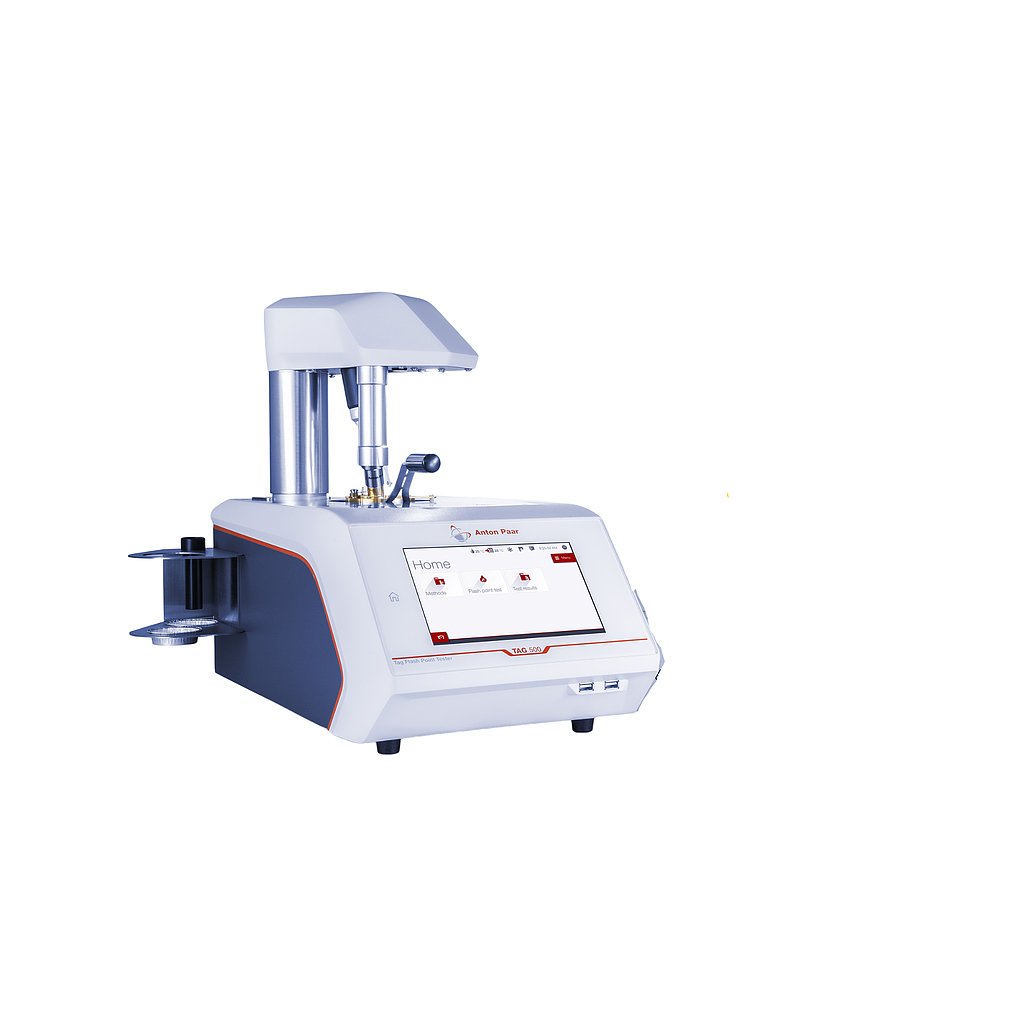

Anton Paar TAG 500 TAG Flash Point Tester (-7 °C ~ 130 °C, -35 °C ~ +130 °C)

Application range (flash point temperature):

Internal cooling: 10 °C to 130 °C

External cooling: -30 °C to +130 °C

Sample temperature range:

Internal cooling: -7 °C to +130 °C

External cooling: -35 °C to +130 °C

Ignition type:

Electric (encapsulated hot wire)

Optional gas ignition

Cooling: Fan-supported internal Peltier cooling technology or external cooler

Barometric pressure correction: Flash point is automatically corrected to barometric pressure

Flash detection: Automatic detection by thermocouple

Sample temperature: Automatic by Pt100

Calibration: Calibration of sample and block temperature, and internal barometer

Memory: 1 GB space for approx. 50,000 tests and 1,000 users

Interfaces: 4 × USB, 1 × LAN

Power supply: 100 V to 240 V, 50/60 Hz, 300 W

Gas supply:

Integrated fire extinguisher: CO2 or N2 inert gas; inlet pressure 400 kPa to 500 kPa

Optional gas ignition: 50 mbar of propane or butane

Dimensions: 262 mm × 497 mm × 477 mm (W × D × H)

Weight: Ca. 15 kg
