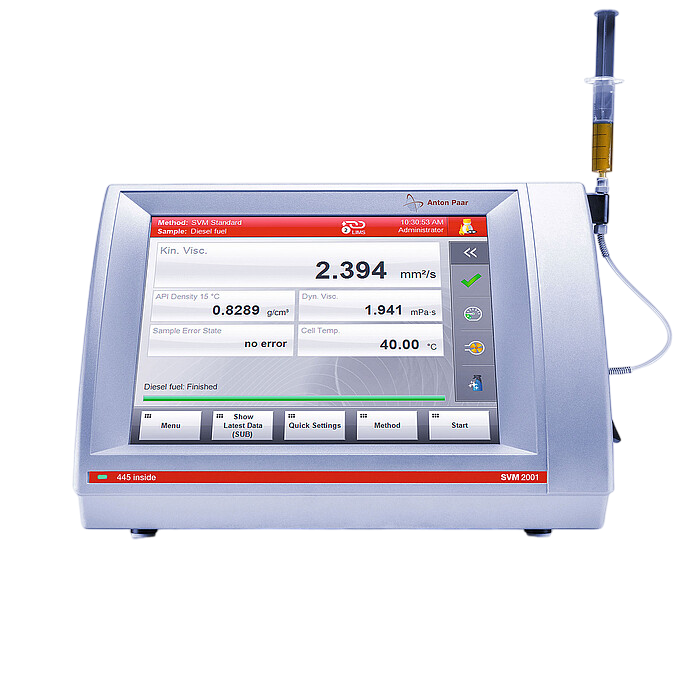

Anton Paar SVM 2001 Kinematic Viscometer (0.2~30,000 mm²/s; 0~3 g/cm³; +15 °C~+100 °C)

Measuring Range

Viscosity: 0.2 mm²/s to 30,000 mm²/s

Density: 0 g/cm³ to 3 g/cm³

Temperature: +15 °C to +100 °C

Precision

Viscosity repeatability and reproducibility: 0.1 % and 0.35 %

Density repeatability and reproducibility: 0.0002 g/cm³ (0.00005 g/cm² with ASTM D4052 option) and 0.0005 g/cm³ (0.0001 g/cm² with ASTM D4052 option)

Cloud/freeze point repeatability and reproducibility: -

Temperature repeatability: 0.005 °C

Temperature reproducibility: 0.03 °C from +15 °C to +100 °C

Performance

Sample volume min. / typical: 1.5 mL / 5 mL

Solvent volume min. / typical: 1.5 mL / 6 mL

Max. sample throughput: 33 samples per hour

Data memory: 1,000 measurement results

HID (Human Interface Device): 10.4" touchscreen, optional keyboard, mouse, and 2D bar code reader

Interfaces: 4 x USB (2.0 full speed), 1 x Ethernet (100 Mbit), 1 x CAN bus, 1 x RS-232, 1 x VGA

Power supply: AC 100 V to 240 V, 50 Hz to 60 Hz, 250 VA max.

Ambient conditions: 15 °C to 35 °C, max. 80 % r.h. non-condensing

Net weight : 15.9 kg

Dimensions (W x D x H): 33 cm x 51 cm x 23.1 cm
