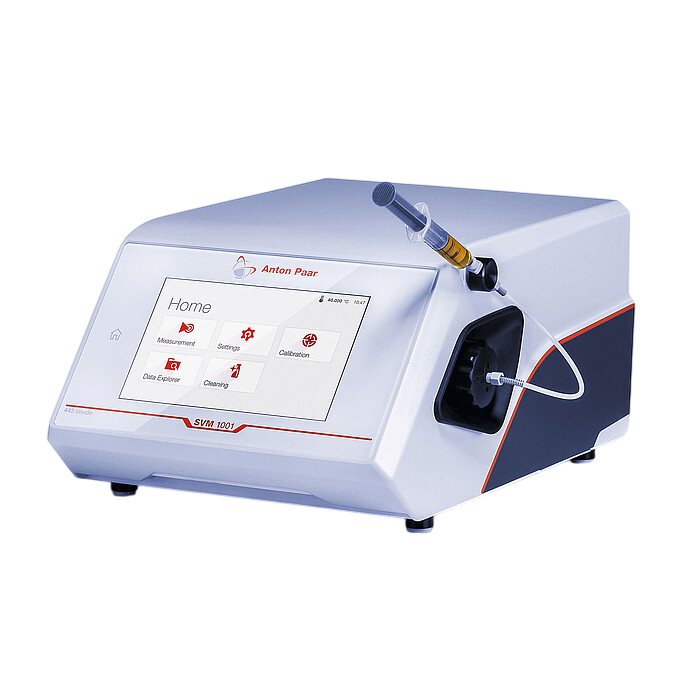

Anton Paar SVM 1001 Automatic Viscometer (0.3 mm²/s ~ 5,000 mm²/s)

Measuring Range

Viscosity: 0.3 mm²/s to 5,000 mm²/s:

Density: -

Temperature: +15 °C to +100 °C (one temperature, second temperature optional):

Precision

Viscosity repeatability* and reproducibility*: 0.1 % and 0.35 %

Density repeatability* and reproducibility*: -

Temperature repeatability: 0.005 °C

Temperature reproducibility: 0.03 °C from +15 °C to +100 °C

Performance

Sample volume min. / typical: 1.5 mL / 5 mL

Solvent volume min. / typical: 1.5 mL / 6 mL

Max. sample throughput: 37 samples per hour

Data memory: 1,000 measurement results

HID (Human Interface Device): 7" touchscreen

Interfaces: 4 x USB (3 x A, 1 xB)

Power supply: At instrument: DC, 24 V /3A, AC adapter 90 VAC to 264 VAC, 47 Hat to 63 Hz, < 75W

Ambient conditions: 15 °C to 35 °C, max. 80 % r.h. non-condensing

Net weight in kg: 5.6 kg

Dimensions (W x D x H): 26.5 cm x 36.5 cm x 18 cm

*Attested at the points of works adjustment or calibration correction points, not including the uncertainty of the standard
