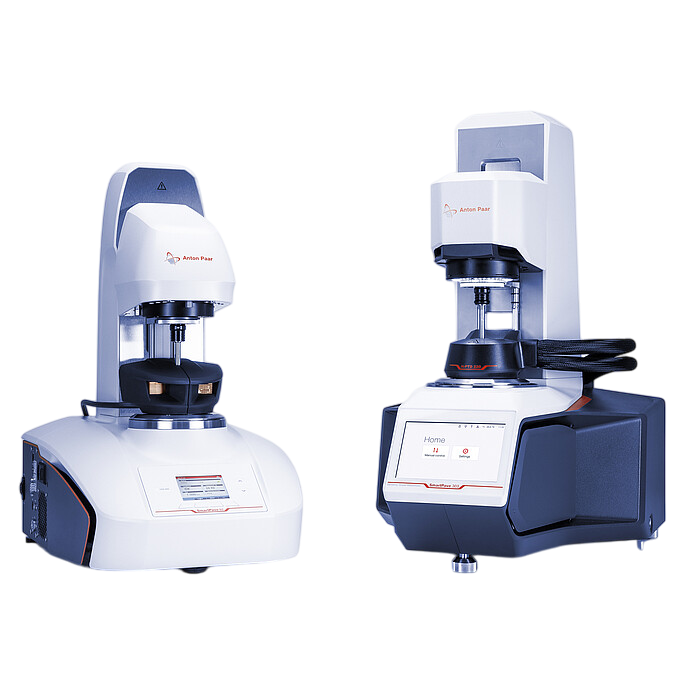

Anton Paar SmartPave 92 Dynamic Shear Rheometer (0.4 μNm; 0.4 μNm; 125 mNm)

Bearing design: Air, fine-pored carbon

Motor design: Electronically Commutated (EC) - Permanent Magnet Synchronous Motor

Displacement transducer design: High-resolution optical encoder

Working mode: Combined Motor Transducer (CMT)

Minimum torque (rotation): 0.4 µNm

Minimum torque (oscillation): 0.4 µNm

Maximum torque: 125 mNm

Minimum angular deflection (set value): 1 µrad

Maximum angular deflection (set value): ∞ µrad

Minimum angular velocity [1]: 0 rad/s

Maximum angular velocity: 157 rad/s

Maximum speed: 1500 1/min

Minimum speed (CSS/CSR): 10⁻³ 1/min

Minimum angular frequency [2]: 10⁻⁴ rad/s

Maximum angular frequency: 628 rad/s

Maximum frequency [3]: 100 Hz

Normal force range: - N

Normal force sensitivity: - N

Minimum gap size change: 0.625 µm

Dimensions (W x H x D): 380 x 660 x 530 mm

Weight: 33 kg

1. In controlled shear stress (CSS) mode. In controlled shear rate (CSR) mode, depending on measuring point duration and sampling rate.

2. Theoretical value (duration per cycle = 2 years)

3. Higher frequencies are possible using multi-wave functionality (942 rad/s (150 Hz) or even higher, depending on measuring system and sample)

4. Depending on used temperature device
