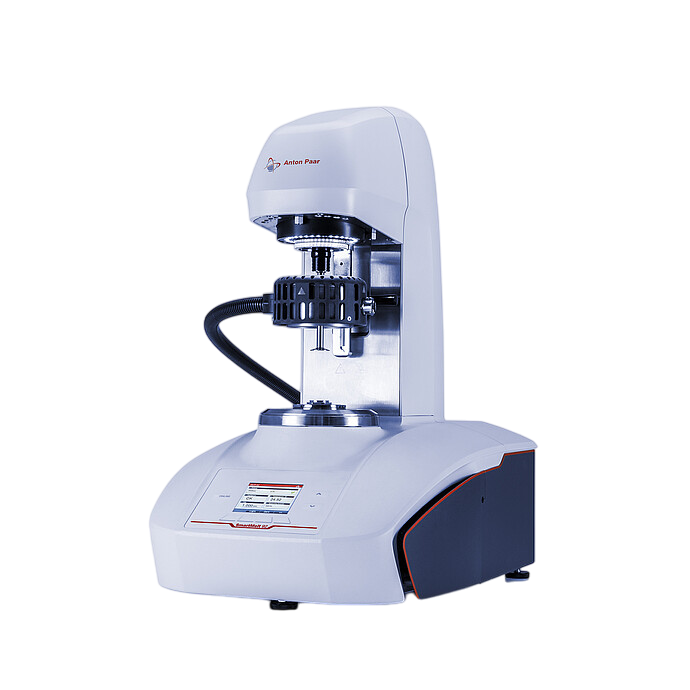

Anton Paar SmartMelt 92 Polymer Melt Rheometer (0.4 μNm; 0.4 μNm; 125 mNm)

Bearing design : Air, fine-pored carbon

Motor design: Electronically commutated (EC) – permanent magnet synchronous motor

Displacement transducer: High-resolution optical encoder

Minimum torque (rotation): 0.4 μNm:

Minimum torque (oscillation): 0.4 μNm:

Maximum torque: 125 mNm: 215 mNm

Minimum angular deflection (set value): 1 μrad

Maximum angular deflection (set value): ∞ μrad

Maximum speed: 1,500 rpm

Minimum angular frequency1): 2 x 10⁻⁵ Hz

Maximum angular frequency: 100 Hz

Temperature oven design: Electrical temperature oven

Recommended measuring geometry: Plate-plate, disposables: Plate-plate, cone-plate, disposables

Temperature range: -150 °C to +400 °C

Maximum heating rate: 50 °C/min

Maximum cooling rate: Up to 100 °C/min²)

Dimension (W x H x D): 380 mm x 660 mm x 530 mm

Weight: 33 kg
