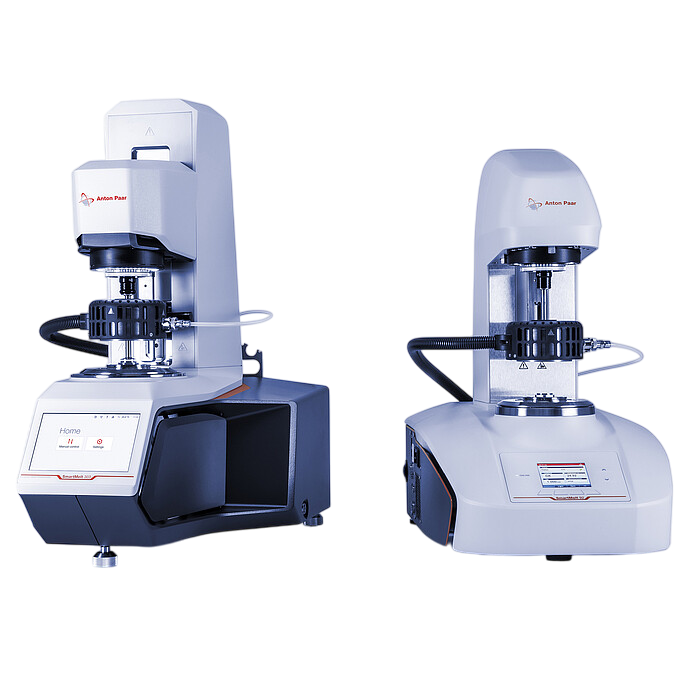

Anton Paar SmartMelt 303 Polymer Melt Rheometer (5 nNm; 1 nNm; 215 mNm)

Bearing design : Air, fine-pored carbon

Motor design: Electronically commutated (EC) – permanent magnet synchronous motor

Displacement transducer: High-resolution optical encoder

Minimum torque (rotation): 5 nNm:

Minimum torque (oscillation): 1 nNm:

Maximum torque: 215 mNm

Minimum angular deflection (set value): 0.5 μrad

Maximum angular deflection (set value): ∞ μrad

Maximum speed: 3,000 rpm

Minimum angular frequency1): 2 x 10⁻⁸ Hz

Maximum angular frequency: 200 Hz

Temperature oven design: Electrical temperature oven

Recommended measuring geometry: Plate-plate, disposables: Plate-plate, cone-plate, disposables

Temperature range: -150 °C to +400 °C

Maximum heating rate: 50 °C/min

Maximum cooling rate: Up to 100 °C/min²)

Dimension (W x H x D): 453 mm x 725 mm x 673 mm

Weight: 48 kg
