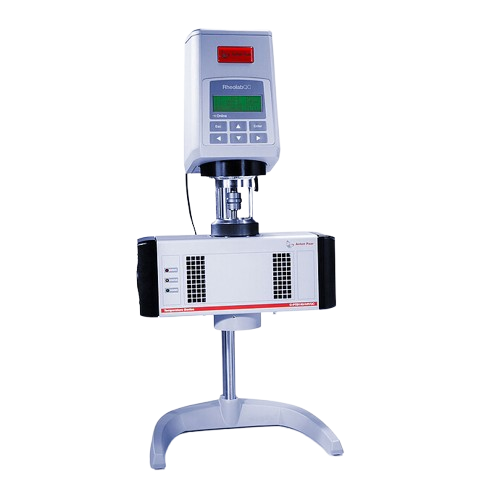

Anton Paar RheolabQC Rotational Rheometer (0.01 1/min ~ 1200 1/min; 0.20 mNm ~ 75 mNm)

Speed: 0.01 1/min to 1200 1/min

Torque: 0.20 mNm to 75 mNm

Shear stress: 0.5 Pa to 3 x 104 Pa

Shear rate: 10-2 1/s to  6500 1/s

Viscosity range

(depending on the measuring system): 1 mPa.s to 109 mPa.s

Temperature range: -20 °C to +180 °C

Angular resolution: 2 µrad

Physical variables (measurement or evaluation):

Speed

Torque

Shear rate

Shear stress

Dynamic viscosity

Temperature

Time

Deformation

Compliance

Yield stress

Flow and viscosity curve

Thixotropy

Time and temperature test
