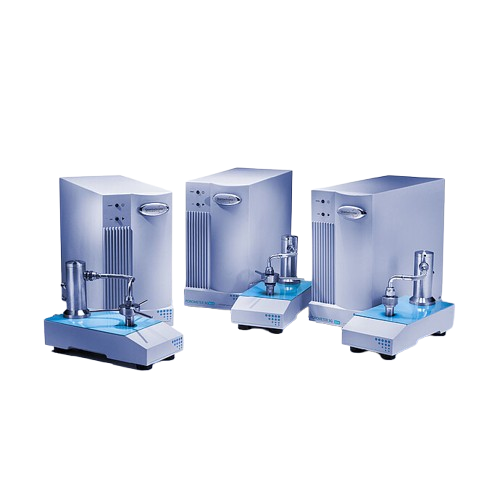

Anton Paar Porometer 3G micro Capillary Flow Porometers For Through-Pores (0.07 µm; 100 µm)

Pore size, minimum: 0.07 µm

Pore size, maximum: 100 µm

Pressure controllers: 1

Controller #1: 0 psi to 100 psi

Controller #2: n/a

Pressure sensors: 2

Sensor #1: 0 psi to 5 psi

Sensor #2: 0 psi to 100 psi

Flow sensors: 1

Sensor #1: 0 L/min to 100 L/min

Sensor #2: n/a

Flow sensor switching: n/a

Pressure sensing accuracy: ±0.05 % f.s.

Pressure resolution: 16 bit A/D equivalent

Flow sensor type: Precision thermal mass flow

Flow sensor settling time: <2 seconds

Flow sensor temperature coefficient: <0.05 %/°C (15 °C to 45 °C)

General specifications

Electrical properties: 90 V to 240 V AC, 50/60 Hz

Main control unit dimensions (H x D x W): 40 cm x 45 cm x 19 cm (15.8 in x 17.8 in x 19 in)

Sample holder block dimensions (H x D x W): 24 cm x 32 cm x 15 cm (9.5 in x 12.6 in x 6 in)
