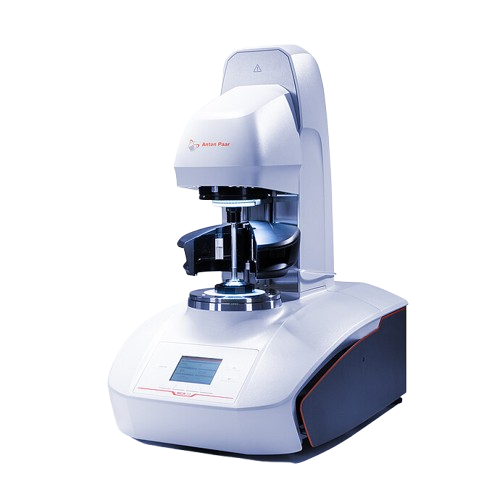

Anton Paar MCR 92 Entry-Level Rheometer (125 mNm; 0.4 µNm; 0.4 µNm)

Bearing: Ball

Maximum torque: 125 mNm

Minimum torque, rotation: 0.4 µNm

Minimum torque, oscillation: 0.4 µNm

Torque resolution: 100 nNm

Angular deflection, set value: 1 to ∞ µrad

Angular deflection, resolution: 614 nrad

Step rate, time constant: 100 ms

Step strain, time constant: 100 ms

Minimum angular velocity (2): 10⁻⁴ rad/s

Maximum angular velocity: 157 rad/s

Minimum angular frequency (3): 10⁻⁴ rad/s

Maximum angular frequency: 628 rad/s

Minimum speed (CSS/CSR): 10⁻³ rpm

Maximum speed: 1500 rpm

Maximum temperature range: -50 to +400 °C

Connections: USB, Ethernet, RS232, Analog interfaces, Pt100 port

Dimensions: 380 x 660 x 530 mm

Weight: 33 kg
