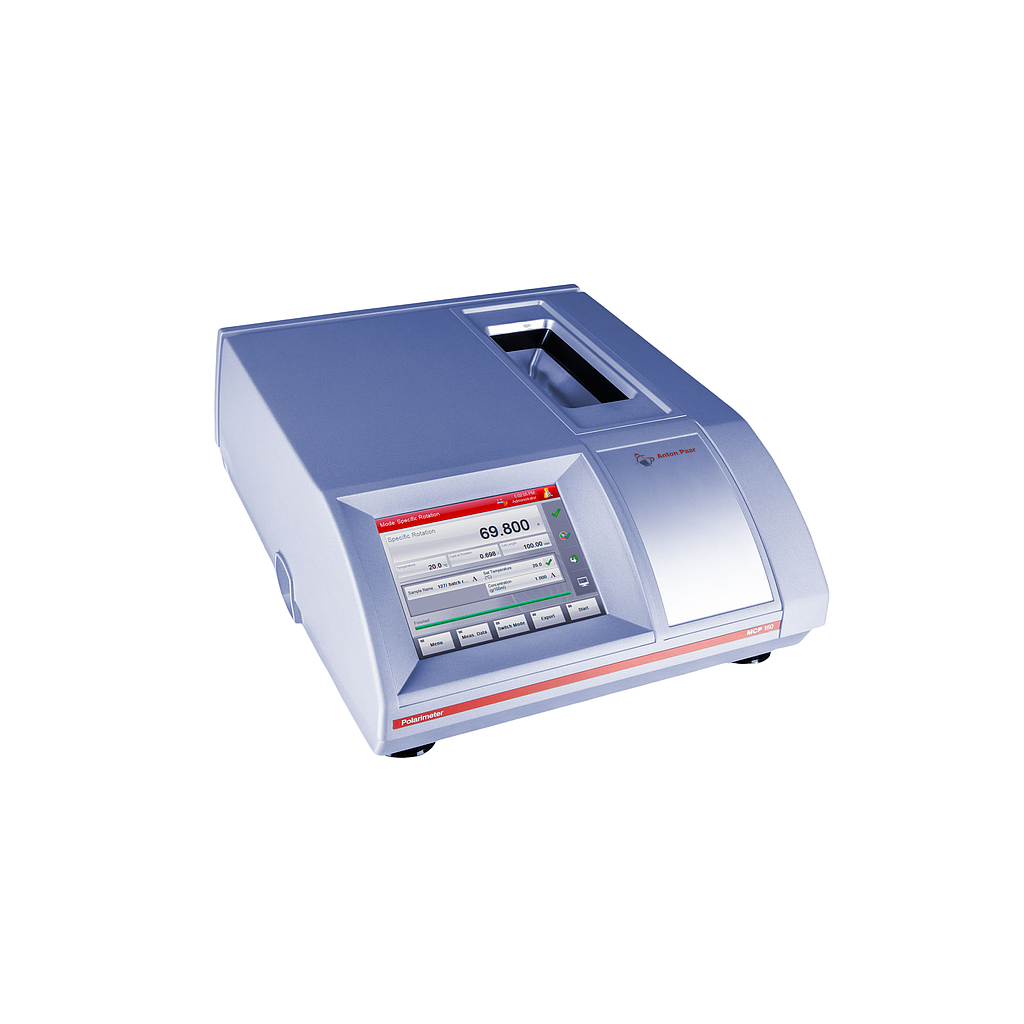

Anton Paar MCP 100 Modular Compact Polarimeter (±89.9°; ±0.01°)

Measuring scales: °Optical Rotation, °Specific Rotation, %Concentration

Measuring range: ±89.9°

Resolution: 0.001°

Accuracy: ±0.01°

Repeatability: ±0.01°

Response time: 12 sec.

Wavelength: 589 nm

Wavelength: LED, with average lifetime of 100 000 hours

Sensitivity: Light intensity control compensates attenuation up to Optical Density (OD) 2.0

Temperature sensor: Built-in PT 100 sensor

Temperature resolution: 0.1 °C

Temperature accuracy: ±0.2 °C

Temperature control: Automatic Peltier temperature control at 20°C and 25°C, or without temp. control

Sample cell / quartz control plate: Toolmaster™ automatic sample cell and quartz control plate identification; sample cell path length of 2.5 mm to 100 mm

Display: TFT touchscreen 5.7" (145 mm), 640 x 480 Pixels

Interfaces: 3 USB, RS232, Ethernet, CAN bus, easy connection of keyboard, mouse, printer, bar code. Network capability

Dimensions (LxWxH): 370 mm x 320 mm x 130 mm (14.6 in x 12.6 in x 5.1 in)

Weight: 7.8 kg (17.2 lbs)

Power supply / consumption: AC 100 to 240 VAC, 50/60Hz / 70VA, 120 VA max.
